3.7kw Silent Oil Free Scroll Compressor Air Part

Product Description

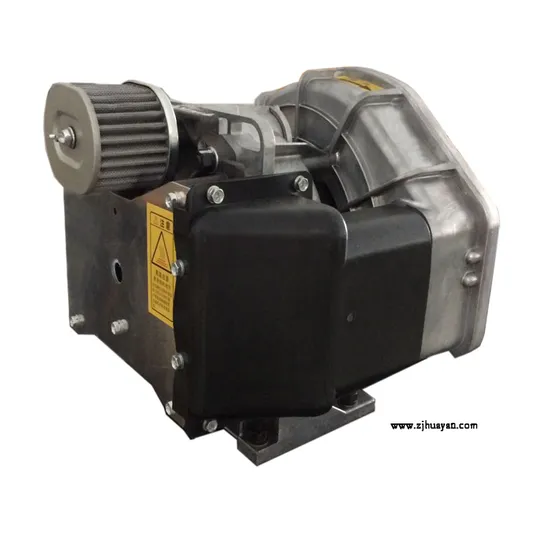

3.7kw oil free scroll compressor air end

Oil free scroll air compressor head(HK-D04)
Rated pressure	0.7MPa
Max. pressure	0.95MPa
Air flow	300-400L/min
Drive mode	Belt drive/Direct drive
Exhaust air temperature	135ºC
Motor Power	3-4KW
Speed	2550-3100r/min
Weight	19KG
Size	400x330x300mm

The feature of the scroll air compressor
Silent: Low noise & Low Vibration: Silent operation and low vibration assure comfortable and quiet work space.
Clean: Clean Air 100% Oil-Free:Air exhausted from oil-type compressors contain oil, moisture and dust. Oil-free type compressors can supply clean air.
Safe: Safe Backup Function:Even if one air end fails, another air end automatically replaces it by jump control. Unmanned operation at night has become easy.
Easy: Easy to use Controls:High quality microcomputer is mounted. Maintenance monitor digitally displays operating conditions, warnings and cautions. Automatic power failures and reset function can be dealt with easily.
Smart: Compact and Smart design:There are no extruding handles on the back of machine. Its simple design and reduced installation space required allows it to fit well in any office.
Environment: Energy Saving
Multi-stage Control: Plural air ends are built into one compressor. Multi-stage control system activates in accordance with air consumption and selects optimum number of air ends required to achieve highest energy saving operation available.
Energy-saving Control System: When air consumption greatly fluctuates, selection of compressor control system makes a big difference on the energy consumption of your compressor
Compression principle of oil-free scroll compressors
As the orbiting scroll orbits from the No.1 position to the No.4 position, air is forced through the scroll components and compressed through the outlet in the centre.
Leadway is a leading manufacturer of oil free scroll air compressors, scroll air ends. The products are low noise, low vibration, oil free, silent, easy maintenance,energy Saving, high reliability. They are ideal for
Transportation - electric buses, traditional and hybrid trucks, transit buses, school buses, trains
Medical/Healthcare - instrument air and breathing air
Biotechnology - Laboratory
Automotive - Painting
Food and Beverage
Electronics
Commercial Printing
Drug Manufacturing
We use advanced production equipments and precision examine devices, strict quality control to ensure high quality products . We supply efficient quality services to satisfy customer.
Our Mission is to provide the most technologically advanced oil free scroll air compressor currently available to the China and international markets.
