US$30.00-50.00
|
200 Pieces
(MOQ)
|
Basic Info.
Output Pressure
0.2-0 .3 MPa
Relief Valve Pressure Range
0.35±0.05 MPa
Input Connection Screw Thread
G 5 / 8, Cga540, Male G 5 / 8, G3/4, DIN477 and Cg
Humidifier Capacity
170ml
Production Capacity
10000PCS/Momth
Product Description
Product Description
All series have passed the CE certificate
The main part uses the goodness copper, and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body
High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree; Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.

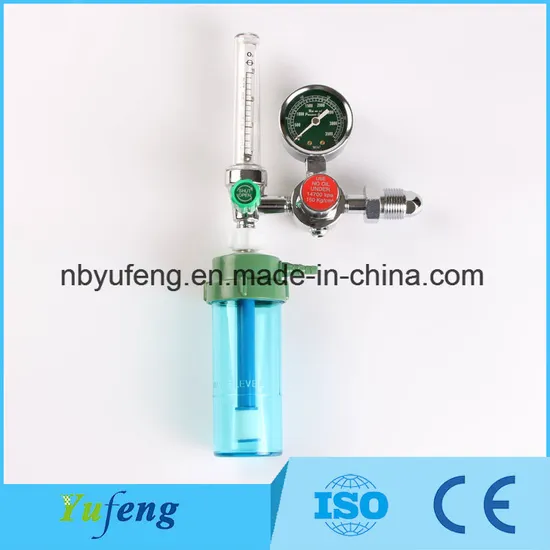

Name | YF-04B-01 Bull nose type Medical Oxygen Regulator |
Type | YF-04B-01 |
Gas | O2 |
Input pressure | 15MPa |
Output pressure | 0.2 ~ 0.3MPa |
Flow control range | 1-10L/Min , 1-15L/Min |
valve pressure range | 0.35 ± 0.05Mpa |
Input connection screw thread | G5/8-14-RH,CGA540-RH,G3/4-14-RH,BULL NOSE,CGA-870 |
Output connection screw thread | 8mm |
Valve material | Brass |
Pressure gauge | 40mm |
Bottle material
| PC |
Humidifier capacity
| 170ml |
Services | reply to you within 24 hours |
delivery time | 15-25 days |
warranty | 1 year |
Products show
Other products show
Company Information Yuyao Yufeng Medical Equipment Co.,Ltd,founded in 1998,is a global leader in gas
flow control systems. As a total solution provider, YUFENG offers its customers
value-added services, such as customized research, product development, technical support and on-site evaluation.
With its diversified product lines, R&D strengths, as well as its IS09001, CE,ISO13485 certified,100,000 square-foot manufacturing facility, YUFENG is equipped to provide
its customers with quality products and excellent services.
