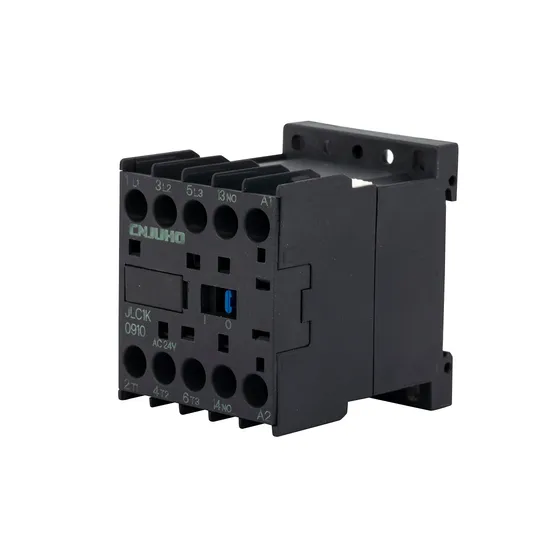

1.Application: JLC1-K series AC contactor is suitable for using in the circuit up to the rate and frequent starting,controlling the AC motor.
The addition of auxiliary contact group to the contactor,combined with the proper thermal relay,can act to protect the circuit bound to overload
| Specification/Type | JLC1-K06 | JLC1-K09 | JKC1-K12 |
| Use group under AC-3 | 6 | 9 | 12 |
| Rated working current(Ie)A | 5 | 7.5 | 10 |
| Conventional thermal current(Ith)A | 16 | 20 | 20 |
| Rated working voltage(Ue)V | 380 660 |
| Rated insulation voltage(Ui)V | 690 |
| AC-3 | Electrical life(times) | 0.5*106 |
| (6Ie Ie) | Operation frequency h-1 | 1200 |
| AC-4 | Electrical life(times) | 10*104 |
| (6Ie Ie) | Operation frequency h-1 | 300 |
| Mechanical life | 3*106 |
| Auxiliary contact | Conventional thermal current | 6A |
| Electrical life | AC-15(360VA) | 0.5*10 |
| (times) | DC-13(13W) |
| Coil specification | Rated control voltage(Us) | AC:12,24,45,110,220,380 |
| DC:12,24,45,110,220 |
| Pick-up voltage | AC:0.85~1.1Us DC:0.85~1.1Us |
| Releasing voltage | AC:0.1~0.75Us DC:0.2~0.75Us |
| Coil power VA | Pick-up | 40 |
| Retain | 4 |
| Consumption | 1.2W |
| Pick-up time | 6~18ms |
| Releasing time | 5~23ms |
| Power factor | Making 0.8 Breaking 0.3 |
