Product Details
Product Description
Product Description
Product Introduction:

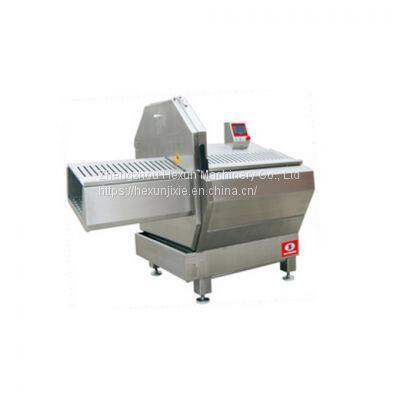

Chopping machine refers to the equipment for cutting steaks, ribs, cold meat and other medium and large sized ingredients in the form of slices, segments and dices through the cooperation of the transmission system and movement.
It is used in meat processing plants, the production of family steaks, meat processing in fresh supermarkets and kitchen production and processing of various sizes. This machine is suitable for cutting boneless meat, bone-in meat, cooked meat, fish, cheese.
Technical parameters:
Power 4KW
Weight 330kg
Voltage 3 phase, 380V, 50HZ
Size 832x1667x1496mm
Cutting thickness 1-30mm
Cutting speed 90--180 parts/min
Body material: All stainless steel 18-10
It can process 500-600kg of meat per hour
Product Details:
Dual cutting system - continuous cutting or step-by-step cutting system
The cutting thickness can be adjusted
Programmatic carrier travel for automatic return
Easy to operate, adapt to high-pressure cleaning, safe and hygienic
1. Good safety protection performance, after the discharge chute, door and feeding chute are opened, the machine immediately stops running.
2. Easy to disassemble, special design material claw, to prevent material slippage.
3. Spindle reducer (German Nord brand), electrical components (contactor, relay for Siemens), PLC, relay for Omron.
4. Wide range of application and large output.
Features & Features:
2. Cutting, intelligent claws, easy to disassemble and assemble;
3. Intelligent cutting claws to prevent the product from slipping and the cutting quality of the product.
4. The spindle reducer, electrical components, PLC, relay, etc. are all stable accessories, and the control panel adopts a text display.
5. All places where this machine comes into contact with meat are made of 304 stainless steel
The equipment is a safe cutting equipment, loading materials put on the material table with card loading function, using linear guide rail to limit the direction.
The servo motor and ball screw provide power while 0.1mm walking accuracy, after the material placement is stable, the feeding shaft matching speed is slowly fed forward to ensure stable size specifications.
This control system has a variety of cutting functions
1. Continuous mode, continuous action of feeding and feeding, higher efficiency; This mode is suitable for ingredients that do not have high material height or thickness requirements;
2. Intermittent mode, feed feed intelligent calculation according to position, intermittent action; This mode is suitable for slice thickness, and each piece is dimensionally stable;
