Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
surface grinder
Certification
GS, CE, RoHS, ISO 9001
Size of work table(L x W x H)
1250X800 1600X800 2000X800
Max. Longitudinal movement of worktable
1350 1700 2100
Max. Distance from the spindle centerlin
850
Max. Cross movement of grinding herd
850
Max. Vertical movement of grinding head
800
Abrasive wheel dim (L X D X W)
450X127X50
Speed of grinding wheel
1440
Power of spindle motor
11
Power of oil pump motor
5.5
Processing accuracy
0.015/1000
Transport Package
Plywood Package
Production Capacity
500 Set
Product Description

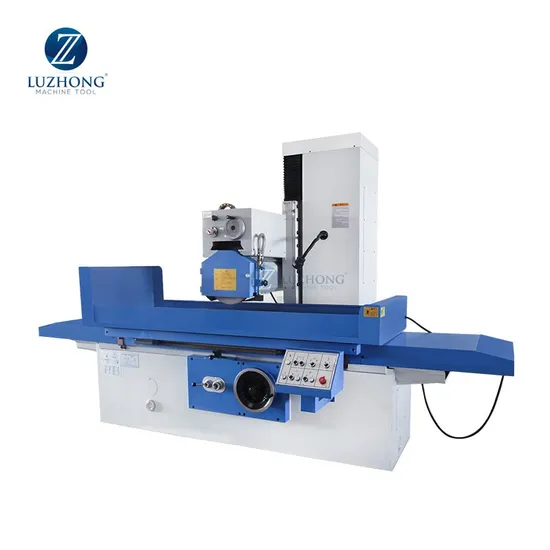

Universal Automatic Metal M7180 Hydraulic Surface Grinding Machine with price Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:
Model Description . | Unit | M7180 |
Max distance from table surface to spindle center | mm | 700 |
MaxJongitudinal travel | mm | 1700 |
2300 |
3100 |
Min. longitudinal travel | mm | 200 |
Table longitudinal speed | m/min | 3-27 |
Tx TableT slot No*width | xmm | 3x22 |
Wheelhead cross moving | Continuous feeding speed | m/min | 0.5-4.5 |
Feed travel | mm/t | 3-30 |
Per div feed of handwheel | mm | 0.02 |
| Rapid speed | mm/min | 400 |
Wheel head vertical moving | Per Rev. feed of ha nd wheel | mm/gra | 0.005 |
Per Rev. feed of ha nd wheel | mm | 0.515 |
Wheelhead motor | Power | kw | 15 |
Speed | rpm | 1440 |
Total rated power | kw | 28.75 |
(xx) Grinding wheel size(ODx WxiD) | mm | 450x63x203 |
Ma chine tool weight | kg | 9500 |
11000 |
13000 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
