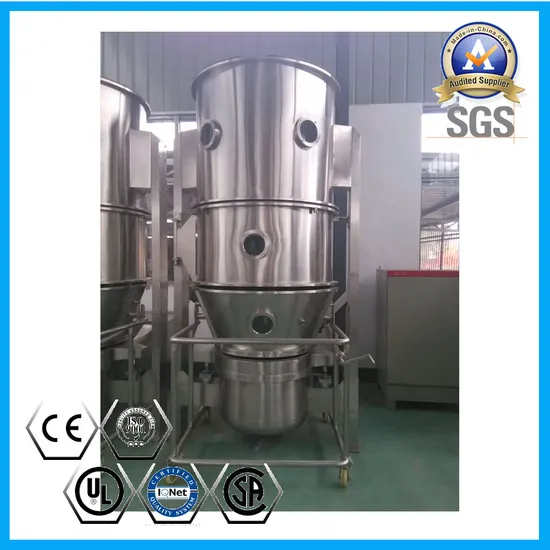

Fluid Bed Granulator for Herbal Medicine/ Instant Milk Drink /Pellets/Agglomerates

Product Description

Product Description

Fluidized/ Fluidizing/ Pharma Fluid Bed Granulator for Food and Pharmaceutical machine Scope of Application
Medicine granulating
Granulating: granule of tablet, quick solved drink, granule used for capsule Coating: granule, pill protection layer , formulated color , slow release, film,coating for intestines solving
Foodstuff granulating and coating
Sugar, coffee, cocoa powder, cream,powder syrup, amino acid, avoring,puffed food
Granulating for pesticide,plgment,dyestuff
Drying for powder,granule,block raw materials

Food Powder Granulator Scope of Application
Medicine granulating and coating
Granulating: granule of tablet, quick solved drink, granule used for capsule Coating: granule, pill protection layer , formulated color , slow release, film,coating for intestines solving
Foodstuff granulating and coating
Sugar, coffee, cocoa powder, cream,powder syrup, amino acid, avoring,puffed food
Granulating for pesticide,plgment,dyestuff
Drying for powder,granule,block raw materials

Food Powder Granulator Characteristics
Because of powder granulating, the uidity can be improved and the powder dust can be reduced.
Because of powder granulating, the solubility is improved
The procedures of mixing, granulating and drying can be finished in one step(granulating through one step)
Because the atomizer for adhesive adapts multi-uid spray lance, the particle is uniform and the percent of pass of finished products is raised greatly .
There is no dead corner in equipment. It is quick and convenient to feeding and discharge.
The equipment is clean through washing.

Food Powder Granulator Technical Parameter

Specification	3	5	15	30	45	60	90	120	150	200	300	500
Volume(L)	12	22	45	100	155	220	300	420	530	660	1000	1500
Amount to be treated(kg/per time)	1.5/4.5	4/6	10/20	15/45	25/65	40/80	60/120	80/160	90/200	100/300	150/450	300/300
Power of fan(kw)	2.2	3	4	5.5	7.5	11	15	18.5	18.5	22	30	37
Consume of steam 0.4MPa(kg/h)	12	23	42	70	99	141	169	211	251	282	366	451
Consume of compressed air m3/min	0.3	1.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	0.9	1.3	1.5
Noise,db(A)	(fan is installedseparately)≤75
Overall dimension(m)	1.0x 0.55x1.8	1.2x 0.6x2.1	1.25x 0.9x2.1	1.6x 0.9x2.3	1.65x 1.1x2.4	1.85x 1.25x3	1.85x 1.25x3	2.2x 1.65x3.1	2.27x 1.72x3.1	2.34x 1.9x3.5	2.8x 1.9x3.8	3x 2.55x4.2

Note:Model FG can not be equipped with granulating part.

---
