Product Description
Product Description

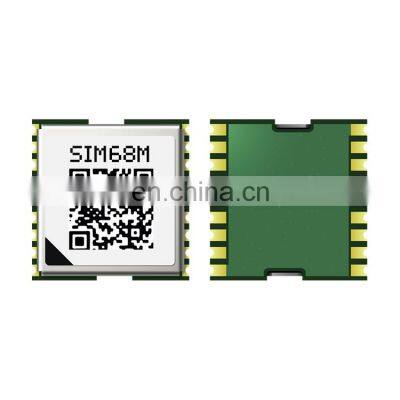

Mechanical data• Dimensions: 10.1*9.7*2.5 mm• Weight: 0.5gFeatures• Support GPS/GLONASS/Galileo/QZSS• Support EASYTM self-generated orbit prediction• Support EPOTM orbit prediction• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)• Support Jamming removing• Low-noise amplifier has been integratedInterfaces• Serial interfaces- UART• Digital I/O- EINT0 input- Pulse-per-second (PPS)• Protocols- NMEA- PMTKSupport evaluation products• SIM68 EVB KIT with USB V2.0 full speed interfaceElectrical data• Power supply: +2.8V ~4.3V• Backup power: +2.3V ~4.6V• Power consumption2,6- Acquisition: 25mA- Tracking: 21mA- AlwaysLocateTM: 340uA- Backup: 14μA• Antenna type- Active and Passive• Antenna power- External or internal VCC_RFPerformance data• Receiver type- 33 tracking / 99 acquisition- channel GNSS receiver• Max. update rate- 10Hz• Sensitivity1- Tracking: -165 dBm- Reacquisition: -160 dBm- Cold starts: -148 dBm• Time-To-First-Fix2- Cold starts: 28s- Warm starts: 26s- Hot starts: <1s- EPO Assist: 13s (CTTFF)• Accuracy- Automatic Position3: <2.5m CEP- Speed4: 0.1m/s• Operation temperature5: -40℃~+85 ℃Certificate• CE• A-TICK————————————————————1.Demonstrated in liberary2.All SV @ –130 dBm, GPS & GLONASS mode3.50% 24 hr static, -130dBm, GPS & GLONASS mode4.50%@ 30m/s5.When at -40℃~-30℃, the sensitivity will be somewhat worse6.@3.3V with a passive antenna Related ProductsRelated 2G 3G 4G GPS ModulesSIERRA MC Series-3G/4G ModulesMC7354 MC7350 MC7304 MC7455 MC7430 HL7588 SIERRA EM Series-3G/4G ModulesEM7305 EM7355 EM7330 EM7430 EM7455 EM7565 SIERRA HL Series-3G/4G ModulesHL7618 HL7648 HL7650 HL7688 HL7690 HL7692 HL7518 HL7528 HL7538 HL7539 HL7548 HL7549 HL7588 HL8518 HL8528 HL8529 HL8548 HL8549 HL6528 SIERRA WP Series-3G/4G ModulesWP7502 WP7504 WP7504-1 WP8548 WP7601 WP7601-1 WP7603 WP7603-1 WP7607 WP7608 WP7607-1 WP7608-1 WP7609 WP7700 WP7702 SIERRA GPRS ModulesSL6087 Q2686RD Q2687RD WISMO228 WISMO218 SIMCOM 4G ModulesSIM7000E SIM7000A SIM7000C SIM7100E SIM7100A SIM7100C SIM7500E SIM7500A SIM7600E SIM7100CE SIM7500CE SIM7600CE SIM7600E-H SIM8909 SIM8950 SIMCOM 3G ModulesSIM5300EA SIM5300E SIM5310 SIM5360E SIM5360A SIM5360J SIM5320E SIM5320A SIM5320J SIM5216E SIM5216A SIM5216J SIM6320C SIMCOM MTK GNSS/GPS/GLONASS/BEIDOU ModulesSIM33EAU SIM33ELA SIM39EA SIM28ML SIM28M SIM68E SIM68V SIM68R SIM68M SIM68VB SIM68MB SIMCOM GSM/GPRS ModulesSIM800 SIM800C SIM800A SIM800F SIM800H SIM800L
>>
