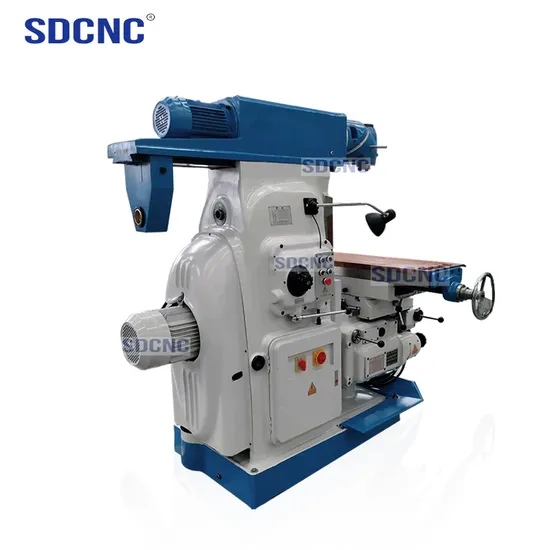

Horizontal Vertical Universal Turret Milling Machine Manufacturing Plant Provided Milling Machine X6232

US$5,600.00-6,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6232
Type
Knee-and-Column Milling Machine
Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Spindle Taper
7:24 ISO40
Table Size
1250*250
Table Travel
600X320X370
Main Motor Power
2.2kw
Lifting Motor Power
0.75kw
Transport Package
Wood Packaging
Specification
1700*1560*1750
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
1700.00cm * 1560.00cm * 1750.00cm
Package Gross Weight
1500.000kg

Product Description


COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.

The main performance characteristics: 1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;
4.Table X,Y axis motorized feed Product Parameters
Specifications Units X6232
Spindle taper 7:24 ISO40
Distance from spindle nose to table surface mm 120-490
Distance from spindle axis to column surface mm 0-500
Spindle speed range(steps) rpm 35-1660
Vertical milling head rotary angle ° 360
Table size mm 1250x250
Table travel mm 600x320x370
Table motorized feed speed (longitudinal /cross) Mm/min (8 steps)22-555 (fast 810)
Table vertical lifting speed Mm/min 560
T slot 3-14-70
Main motor power KW 2.2
Motorized feed motor power KW 0.75
Lifting motor power KW 0.75
Coolant pump motor power W 90
Coolant pump liquid L/min 25
Overall dimensions mm 1700x1560x1750
N.W./G.W. Kg 1320/1420
