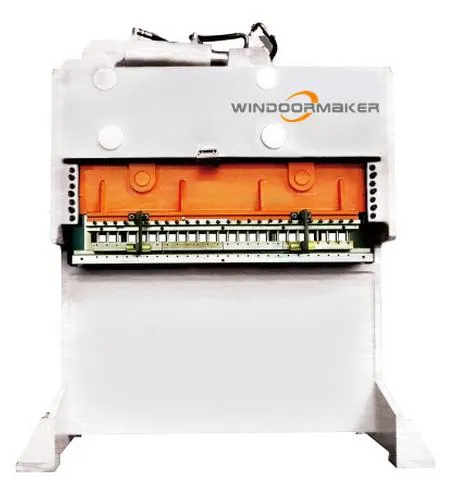

Aluminum Formwork Hydraulic Punching Machine

Product Description

Product Description
Specification
The punching machine is used for the aluminum formwork 80-600mm U Panel and 100x100~200 G profile holes punching. The machine body is heat treated to eliminate internal stress and has sufficient strength and rigidity. The machine adopts high quality hydraulic station driven, the four-bar linkage mechanism ensures that the slider and the punching pins are simultaneously working. The punching stroke adopts photoelectric control, which is easy to operate and has high precision. The punching pins is free of disassembly, so, the hole distance is easily set without disassembling the punching pins, which features high production efficiency and easy operate. The machine have special support system to guide the punching pin to make sure the pins in the center of the core, the punching is free of burrs, and the service life of the punching pins can be extended to 4-6 months. Technical Parameter

Input voltage	3-phase, 380/415v, 50hz
Rated Power	15kW
Punch Stroke	75mm
Working Pressure	18MPa
Max. Pressure	25MPa
Max. Punching Holes	36 nos.
Punching Holes distance	50 mm
Punching time	6 S
Worktable Length	1800mm
Worktable Height	950mm
Overall dimensions	2300x1200x2050 mm
Gross weight	7700KG

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

After Sales Service

Service Windoormaker experts offer our customers complete technical, sales and after-sales service, from the upvc window making machine, aluminium machine or insulating glass machine investment analysis, materials sourcing, machines configuration proposal, factory layout, installation and commissioning etc. Quality Policy Windoormaker is committed to supply the best quality products to our customers. Industry maintains a quality-focused culture to ensure the highest priority on the safety, efficacy and reliability of our products.All our colleagues have the appropriate education, training, skills and experience to carry out their work competently, in accordance with applicable regulations and policies and procedures.Windoormaker's Quality Policy is implemented through a comprehensive Quality Management System. Our performance is monitored and regularly reviewed to ensure our standards of conduct meet our high expectations of quality for our customers.

---
