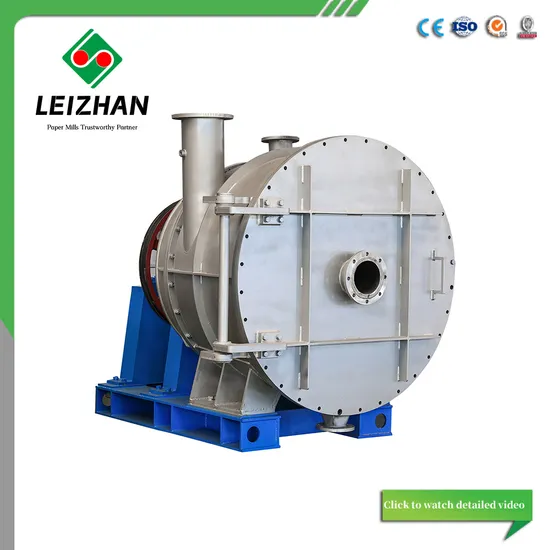

Paper Making Pulp Fiber Turbo Separator for Packing Paper Machine

Product Description

Product Description The single-effect fiber separator is mainly used to separate light and heavy impurities in waste paper pulp and to perform secondary disintegration of the slurry from the hydraulic pulper. This machine is equivalent to a combination of a sealed horizontal hydraulic pulper and a light and heavy impurity slag remover. It has a compact structure and high efficiency. This machine integrates the functions of crushing, impurity removal, and coarse screening, which greatly simplifies The waste paper treatment process and reduces energy consumption.

Detailed Photos
Product Parameters Features of single-effect separator:
The tapered body, while effectively dissolving the fibers, is conducive to separating and removing light and heavy impurities.
It effectively separates light and heavy impurities, improves the degree of fiber dissolution, and is highly energy-efficient.
Automatic slag discharge can be set according to requirements, reliable action
Structure principle
The fiber separator is mainly composed of a casing, a slurry pipe, a screen plate, and an impeller.
The shell of the fiber separator is generally coiled and welded into a conical shape by steel plate, the slurry inlet is set in the tangential direction of the upper part, and the bottom is provided with an outlet for heavy impurities. There is a conical front cover in front of the casing, which is connected with the casing by a hinge, which is convenient for opening during maintenance. There is an outlet for light impurities in the center of the front cover, and a screen plate is provided at the rear of the casing. The slurry passes through the screen holes on the screen plate and is output from the good slurry outlet. The rotating impeller is close to the screen plate, and a small (1-3mm) gap is maintained between the impeller and the screen plate. The impeller is fixed on the rotating shaft, and the rotating shaft is supported by the rolling bearing and driven by the motor to rotate by the pulley.

Type	ZDF1	ZDF2	ZDF3	ZDF4
Capacity(t/d)	20-25	20-40	80-100	100-150
impeller diameter(mm)	355	450	600	650
Into the slurry concentration(%)	3-4
power(KW)	30	37	55	75
