Basic Info.
Position of Pump Shaft
Horizontal
Application
Vacuum Lifter
Transport Package
Packed in Carton, Then Protected by Wooden Pallet
Production Capacity
9000PCS/Year
Product Description

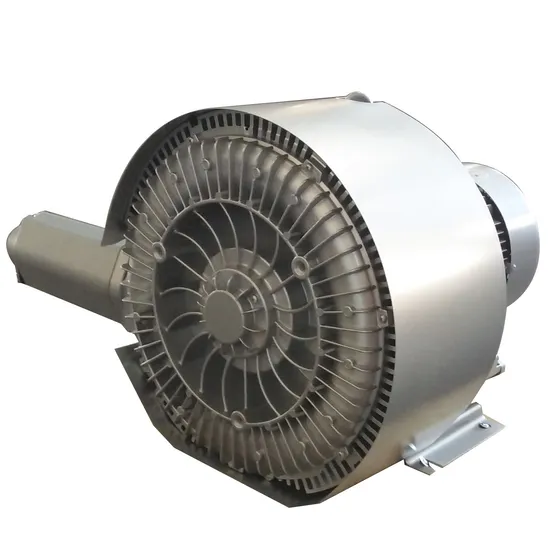

We are the manufacturer for side channel blowers(also called regenerative blower, ring blower), located in Wenling, Zhejiang, China, which is near Ningbo and Shanghai port. Our company is specialized in producing the high pressure and efficiency side channel blowers.
The air flow capabilities of our blowers range from 60 to 2480 m3/h, the max vacuum pressure could reach -500mbar, and the max compress pressure could reach 600mbar, the power ranges from 0.12KW to 29KW. We only produce side channel blowers.
The advantages of our products:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Low noise
7. Good quality and competitive prices.
8. Quick delivery date.
| Model | Stage | Frequency | Power | Voltage | Current | Airflow | Vaccum | Compress | Noise | Weight |
| | | HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg |
| 740 H57 | Double | 50 | 7.5 | 345-415Δ | 600-720Y | 16.7Δ/9.6Y | 500 | -240 | 320 | 74 | 75 |
| 60 | 8.6 | 380-480Δ | 660-720Y | 17.3Δ/10.0Y | 600 | -270 | 300 | 78 |
