Before using our products, please read this manual carefully. It can better troubleshoot some faults for you and get a higher product experience.

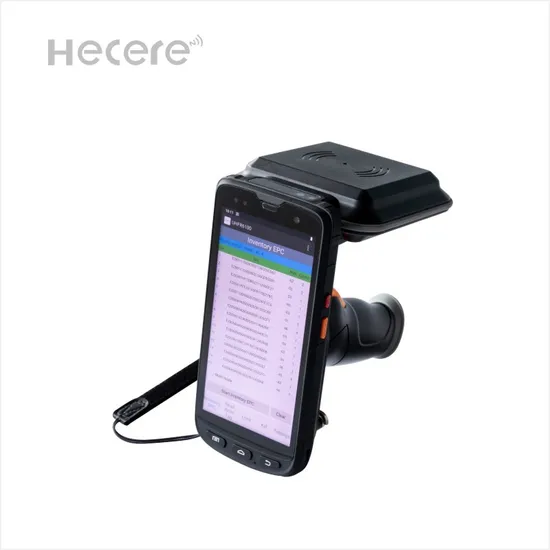

This product is an intelligent object-finding system designed based on RFID UHF technology. The application of this system is very extensive. It can be used in every family who has trouble finding things. it can also be used by small businesses that need to manage assets and items. Compared with some traditional search technologies such as Bluetooth, the technology we use has more advantages in tracker cost and ease of use. In terms of cost, the price of our system is a bit high, but once you have one system, you can use large number of trackers because the price of tracker is very cheap. And our tracker do not need power. Once our tracker is attached to the item, you no need to charge power for it, it will accompany the item permanently as a identification.
Core functions 1.Locate items and find items 2.Inventory items and find missing items 3.Scan items and know what it is
Product Advantage 1.Higher positioning accuracy Traditional positioning technologies such as Bluetooth or GPS can only locate the items at a big area, like tell you this item is at home. However, our system can tell you item is in which cabinet and on which shelf at your home. 2.Tracker no need battery Our tracker no need battery. No matter Bluetooth or GPS, once power off then it lost function. But our tracker will never be power off, because it does not need battery. 3.Tracker is thin and small Our trackers are like paper sticker. You can put them on almost anything in your house. 4.Tracker is cheap Our smart finder system is little expensive, but our tracker is cheap. Once you have a system, then tracker is cheap for you. You can use any number of tracker without limitation.
Application Scenario Families who have trouble finding items Collectors who have many collections Store Leasing company Small business manage asset Small business manage warehouse Researcher manage records Farmers manage livestock Pet shop manage animal Factory manage machine parts or tools Etc...
| ITEM | DESCRIPTION |
| Dimension | 166mm(H)x79mm(W)x31mm(D)±2 mm
(Not including the shield and pistol grip) |
| Weight | 600g (including battery&wrist strap) |
| Display | Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440)touch screen with backlight |
| Backlight | LED backlight |
| Expansions | 1 PSAM, 1 SIM, 1 TF |
| Battery | 3.8V, 9000mAh |
| CPU | Cortex A73 2.0GHz octa-core |
| Operating System | Android 9.0 |
| Storage | 2GB RAM/16GB ROM |
| Operating Temp | -20ºC to 50ºC |
| Storage Temp | -20ºC to 70ºC |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range |
| Protection Level | IP65, IEC compliance |
| ESD | ±15kv air discharge, ±8kv direct discharge |
RFID UHF Specifications | Impinj R2000 of main chip |
| 920MHz-925MHz of frequency |
| Global EPC GEN2 ISO18000-6C protocol |
| 0-33dBm adjustable power, 3dBi Circular antenna |
| 0-25m scanning distance (Depends on tracker type) |
| Software | Hecere Smart Finder software. |
Scanning Power&Distance | Add an item: 5dBm fixed, 0-20cm |
| Scan items: 5dBm default, adjustable, 0-20cm when power is 5dBm. Scanning distance is up to 25m when power is 33dBm |
| Searching: 33dBm fixed, detecting distance is up to 25m |
| Inventory: 33dBm fixed, scanning distance is up to 25m |
| Note: Reading distance is just for reference, it depends on many factor such as the type of tracker, the angle of detection, the material attached to the tracker, etc., |
