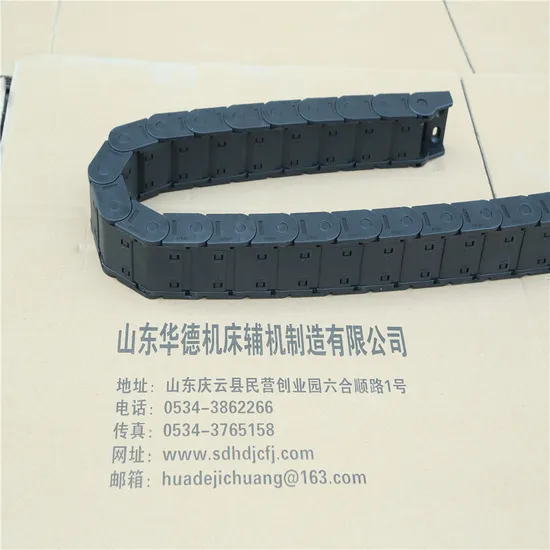

Machine Tool Tank Tow Plastic Chain for Engraving Machine Nylon

Product Description

Product Description

Drag chain is suitable for the nc machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.
Structure
Drag Chain looks like the tank chain drag chain, consists of a lot of link. Link is composed of the up and down or so four sections, each section can open, convenient installation, open the cover plate after put in the cable, tubing, the trachea, etc.

Material and Performance
Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.Operating Life: Under normal use, up to 5 million reciprocating motion.

Drag Chain Selection
High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.
Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.

Type	Inside Diameter (height×width) (mm)	Outside Diameter (height×width) (mm)	Bending radius (mm)	Pitch (mm)
TL7.1	7X7	10X12.5	15.28	16.7
TL10.1	10X6	13.5X13.5	18.28.38	20
TL10.2	10X10	15X17.5
TL10.3	10X15	16X23
TL10.4	10X20	15.5X28
TL10.5	10X30	15X38
TL15.1	15X15	20X25	28.38.48	20
TL15.2	15X20	20X29
TL15.3	15X30	20X40
TL15.4	15X40	20X50
TL15.5	15X50	20X60
TL18.1	18X18	24X30	28.38.48.75	33.5
TL18.2	18X25	24X36
TL18.3	18X37	24X49
TL18.4	18X50	24X61
TL25.1	25X25	35X38	40.55.75.100.125.150.175. 190.200.250	46
TL25.2	25X38	35X51
TL25.3	25X50	35X65
TL25.4	25X57	35X71
TL25.5	25X77	35X91

Type	Inside Diameter (height×width) (mm)	Outside Diameter (height×width) (mm)	Bending radius (mm)	Pitch (mm)
TL20.1	20X38	35X55	55.75.100	45.5
TL20.2	20X50	35X65
TL20.3	20X60	35X75
TL20.4	20X75	35X90
TL20.5	20X100	35X116
TL20.6	20X125	35X141
TL25.1	25X38	40X55	55.75.100.125.150	45.5
TL25.2	25X50	40X65
TL25.3	25X60	40X75
TL25.4	25X75	40X90
TL25.5	25X100	40X115
TL25.6	25X125	40X142
TL30.1	30X38	45X58	55.75.100.125.150	45.5
TL30.2	30X50	45X70
TL30.3	30X60	45X80
TL30.4	30X75	45X95
TL30.5	30X100	45X120
TL30.6	30X125	45X145
TL35.1	35X38	55X63	75.100.125.150.200	66.5
TL35.2	35X50	55X75
TL35.3	35X60	55X85
TL35.4	35X75	55X100
TL35.5	35X90	55X115
TL35.6	35X100	55X125
TL35.7	35X117	55X142
TL35.8	35X125	55X150
TL35.9	35X130	55X155
TL35.10	35X150	55X175
TL35.11	35X154	55X179
TL35.12	35X175	55X200
TL35.13	35X200	55X225
TL35.14	35X250	55X275
TL35.15	35X300	55X325
TL45.1	45X50	65X77	75.100.125.150.200.250	77
TL45.2	45X60	65X87
TL45.3	45X75	65X102
TL45.4	45X90	65X117
TL45.5	45X100	65X127
TL45.6	45X117	65X144
TL45.7	45X125	65X152
TL45.8	45X130	65X157
TL45.9	45X150	65X177
TL45.10	45X154	65X181
TL45.11	45X175	65X202
TL45.12	45X200	65X227
TL45.13	45X250	65X277
TL45.14	45X300	65X327
TL55.1	55X50	75X80	75.100.125.150.200.250.300	77
TL55.2	55X60	75X90
TL55.3	55X75	75X105
TL55.4	55X90	75X120
TL55.5	55X100	75X130
TL55.6	55X117	75X147
TL55.7	55X125	75X155
TL55.8	55X130	75X160
TL55.9	55X150	75X180
TL55.10	55X154	75X184
TL55.11	55X175	75X205
TL55.12	55X200	75X230
TL55.13	55X250	75X280
TL55.14	55X300	75X330
TL65.1	65X50	85X82	125.150.200.250.300	77
TL65.2	65X60	82X92
TL65.3	65X75	85X107
TL65.4	65X90	85X122
TL65.5	65X100	85X132
TL65.6	65X117	85X149
TL65.7	65X125	85X157
TL65.8	65X130	85X162
TL65.9	65X150	85X182
TL65.10	65X154	85X186
TL65.11	65X175	85X207
TL65.12	65X200	85X232
TL65.13	65X250	85X285
TL65.14	65X300	85X335
TL80.1	80X75	106X120	150.200.250.300	100
TL80.2	80X100	106X145
TL80.3	80X125	106X170
TL80.4	80X150	106X195
TL80.5	80X200	106X245
TL80.6	80X250	106X295
TL80.7	80X300	106X345
TL80.8	80X350	106X395
More than drag chain bridge and totally enclosed, also can make double row
