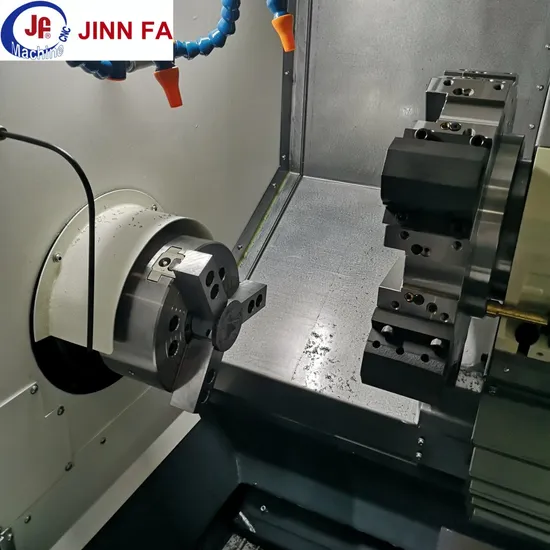

JINNFA YK-200 High Quality Slant Bed CNC Lathe Machine

Product Description

YK-200 YK-200M YK-200MY YK-200/YK-200M/YK-200MY machine tool has fast tool replacement, modular tool holder, and convenient replacement. It has functions such as turning, milling, tapping, and side processing, which can shorten the waste material. Widely used in precision parts of automobiles, electronics, instruments, aerospace, and air hydraulic components.
Product Parameters

ITEM	UNIT	YK-200/200M	YK-200MY
Maximum spindle diameter	mm	Φ630	Φ630
Maximum machining outer diameter	mm	Φ320/Φ300	Φ320/Φ300
Maximum bar through-hole	mm	Φ51	Φ51
Chuck size	inch	8	8
Maximum processing length	mm	530/450	450
X/Y/Zaxis travel	mm	200/0/550	170/550/Y±50
X/Y/Zaxis feed	M/min	24/0/24	24/20/24
Transmission mode		Belt	Belt
Spindle Motor	kw	18.5/22	11/15
Range of spindle speed	rpm	45-4000	45-4000
Spindle nose end specifications		A2-5	A2-5
Screw diameter	mm	Φ32	Φ32
Feed motor	kw	2.4/2.4	2.4/2.4/2.4
Number of turret knives	T	12T/BMT55	12-BMT55
Knife tower positioning time	sec	0.3	0.3
Knife disc drive motor	kw	1.0	1.0
Tool drive motor	kw	servo/2.2/3.7	2.2/3.7
C-axis		nothing/0	0.001 °
Slide rail type		Line track	Line track
Outer diameter tool diameter	mm	25	25
Diameter of drilling tool	mm	Φ40	Φ40
Tail seat axis stroke (oil pressure)	mm	100	100
Number of lubricating pump detection		2spot	2spot
Cooling motor	hp	1/2	1/2
Cooling box capacity	L	100(85%)	100(85%)
Hydraulic motor	hp	2.0	2.0
Oil pressure tank capacity	L	40(85%)	40(85%)
Total power capacity	KVA	25KVA	25KVA
Voltage,frequency		3/220V(380V)/50Hz	3/220V(380V)/50Hz
Voltage stabilization	kw	±10%	±10%
Machine size (length * width * height)	mm	2650*1780*2100	2650*1780*2100
Machine weight	kg	3450/3500	3650/3700
Note: Our company reserves the right to change the specification without advance notice.

Our Advantages

JINN FA Gang Tool CNC Lathe's Advantage:
1: Simplicity and Affordability
Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. The lathe's standard axis servos and leadscrews handle all the work, whereas motorizing a turret can increase costs significantly.
2: Precision
Gang tool CNC lathes have an accuracy advantage over turret lathes due to their simpler moving parts, which reduces tolerance stack up and other types of slop. Additionally, the gang lathe is better suited for moving parts across shorter distances.
3: Rapidity
The tool change process in gang lathes is incredibly speedy as it utilizes slide motion for tool changes, eliminating the need for turret indexing.
4: Quick Installation
Gang tooling lathes offer fast setup times, with a simple set of tools and the ability to switch out a single block for a specific size twist drill allowing for a wide range of gang work to be accomplished.
5: Durability
Gang Tool lathes are known for their robustness, which is directly linked to their simplicity. With fewer moving parts, gang lathes are less prone to errors and malfunctions.
Company Profile
POLOMAC TECHNOLOGY(QING DAO)L.L.C
PROFESSIONAL CNC MACHINING MANUFACTURER & SUPPLIER


We have done a great deal to ensure the quality of our machines meets international standards. To this end, we have rigorous inspection procedures, which are conducted throughout all phases of the manufacturing process. This allows us to ensure the ultimate in quality. This commitment to quality and expert workmanship enables JINN FA to offer machines that fully meet customers' strict requirements of machine performance.
High Accuracy High Quality High Efficiency
JINN FA Machine industrial Co., Ltd. was established in 1976 as a Precision Metal Lathes Machine Tool Manufacturer. JINN FA designs and manufactures a wide range of auto lathes, cnn lathe machines, CNC machining centers and special purpose machines. Based on the company philosophy of technological innovation and leadership, JINN FA has spent great efforts in the research and development of advanced machine tools. Our precision cnc metal lathe machines have been widely sold to many countries in the world. Each metalworking lathe and machine is manufactured to the highest quality standards, with the highest versatility, providing the most competitive edge for parts machining. JINN FA machines are further enhanced by fine craftsmanship, which guarantees the user outstanding precision performance. Today JINNFA continues to labor at the technological forefront of the machine tool industry, maintaining a reputation for innovation design, state-of-the-art manufacturing techniques and rigorous quality control.
JINNFA continues to expand its service market, adhering to the company's belief of continuous technological innovation and technological leadership. In 2001, China POLOMAC TECHNOLOGY Co., Ltd. was established to enable every Jinnfa machine to serve the world.
A highly reputed manufacturer of CNC precision metal lathes, CNC machining centers and special purpose machines.
Certifications
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
3:How can l choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We are a machine tool manufacturer that produces CNC lathes, CNC milling machines, vertical machining centers, Swiss style automatic lathes, grinders, and machine tool specific tools and precision parts OEM.
5: Can you come to our company for technical support?
A : Yes, we can provide on-site technical support, but travel and service fees will need to be paid.
6. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.

---
