Dakiou Paper Cup Forming Machinery Manufacturer

Product Description

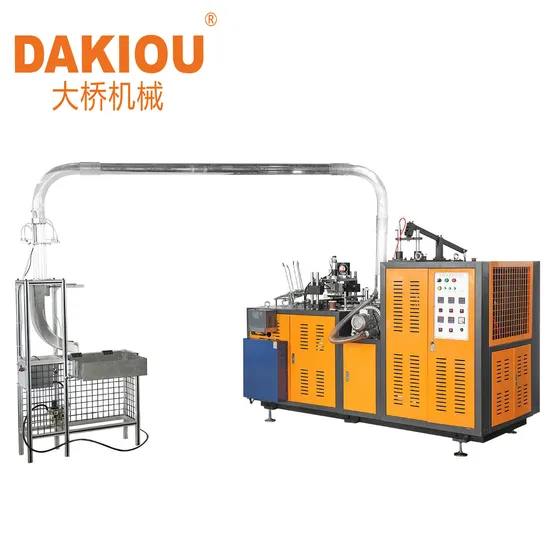

New type ZB-D12S Automatic Paper cup machine
Product Description Our newly designed paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre
heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
Product Description ZB-D12S paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure
of paper-feeding,cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping.
It is idea equipment forproducing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used
for hot drink and beverage.If you need double PE coated paper cups or paper gram higher 250g/m2, we
recommend you to use Ultrasonic paper cup machine. It canproduce single PE coated paper cups and double
PE coated paper cups.
Specification:

Technical Specification:
Model	ZB-D12S
Cup size:	2.5-12oz(if the cup is more than 12oz the machine designed more lager )
Raw Material	150-300g(One-side or Two-side PE (polyethylene) film coated / laminated paper)
Suitable paper weight	150-380g/m2(single PE-coated paper)
Productivity	70-90pcs/min
Power Source	380V 50HZ(customization)
Total Power	4KW
Total Weight	2000KG
Package Size(L x W x H)	2300x1500x1700mm(LxWxH)
Working Air Source	Air pressure 0.4Mpa;Air out-put:0.6m3/min
Making Double PE coated paper cups, need to buy an air compressor

FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on. 3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit. 4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
Paper Cup's General Size :
A= bottom diameter(outside), B=top diameter (outside), C=height,
The above three sizes are demanded .
The other sizes, E=side sealing width, F=bottom knurling height, G=top curling diameter, The more details providing is appreciated.
If you don't offer the sizes E,F,G . We will choose the General Size for you.

From the above image, the steps in the red box are finished in our paper cup
The whole steps are :
1 . Buy the cutted bottom-using rolling paper and cup-side-using sheet paper from PE coated paper suppliers ; In this step, the suppliers will cut the paper sizes according to your requirement.
2 . Pre printing and pre cutting, you can let them done out-serve or buy machines to finish them ;
3 . Forming Cups in paper cup machines ; The same for paper bowl/bucket.
4 . Packing the finished cups in plastic bags and then to cardboard box.
Cups and Bowls and Plates samples show:
FAQ
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company
2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou internationalairport first, and then we can send a car to pick up you.
3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.
4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden

---
