Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Min. Ground Clearance
465mm
Transport Package
Nude Package
Specification
9580*2990*2940mm
Packaging & Delivery
Package Size
960.00cm * 300.00cm * 300.00cm
Package Gross Weight
22300.000kg
Product Description

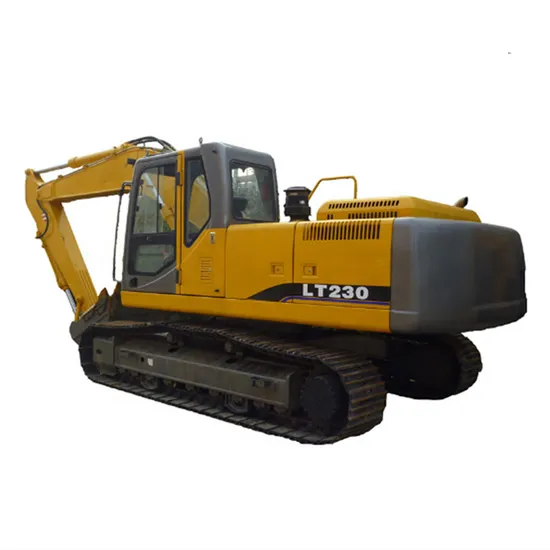

Cost-Effective 22.1ton LT230-6 Crawler Excavator
Product Description
LT - Series Hydraulic Excavator capabilities have expanded far beyond excavation tasks with buckets. With the advent of hydraulic-powered attachments such as a breaker, a grapple or an auger, our excavator is frequently used in many applications other than excavation. Our excavators feature a quick coupler for simplified attachment mounting, increasing the machine's utilization on the job site.
* Equipped with engine that meets Stage III emissions, it has strong power, and the industry's same tonnage industry provides large power output and flow, on the basis of ensuring high efficiency, it also has higher reliability and durability.
* The new main pump displacement is supplied to the system on demand, the standby is automatically reduced, and the work is provided on demand, reducing energy consumption and energy saving.
* Air filter, oil filter, diesel filter, antifreeze, lubrication point and other main maintenance points are centralized layout, realizing convenient one-stop maintenance and inspection.
Product Parameters
Model
| Unit | LT230
|
Bucket capacity
| m3
| 1.0~1.2
|
Operation weight
| kg
| 22100
|
Overall length
| mm
| 9580
|
Overall width
| mm
| 2990
|
Overall height
| mm
| 2940
|
Min. ground clearance
| mm
| 465
|
Total displacement
| L
| 5.9
|
Rated output power
| KW/rpm
| 133/2000
|
Peak torque
| N.m/rpm
| 708/1500
|
Max. digging radius
| mm
| 9540
|
Max. dumping depth
| mm
| 6165
|
Max. digging height
| mm
| 9389
|
Max. dumping height
| mm
| 6577
|
Max. digging force
| kn
| 135
|
