Decooloff Grid Solar Parallel Operation Hybrid Solar Power Inverter for Home

Product Description

OPIP-2000 12v, 24V Pure sine wave 2000w 24V to 110V/220V inverter for home, hottest selling inverter for home
Features:
1.High -end chip ,high-performance CPU, improve the working reliability
2.Overvoltage,lowvoltage, over temperature ,overload, short circuit, reverse connection protection
3.Sound and light alarm under-voltage alarm, with frequency-conversion cooling fan
4.Soft-start function, increase loading capacity
5.Aluminum alloy shell, Heat eliminable
6.With battery clip and manual

Model series:

OPIP-1000-1 / OPIP-2000-1 / OPIP-3000-1
OPIP-1000-2 / OPIP-2000-2 / OPIP-3000-2
OPIM-1000-1 / OPIM-2000-1 / OPIM-3000-1
OPIM-1000-2 / OPIM-2000-2 / OPIM-3000-2 Product Parameters

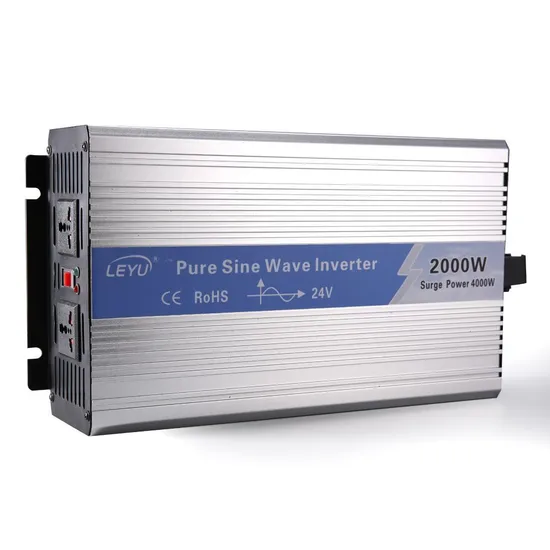

2000W pure sine wave inverter
Product Features :
High transform efficiency ,fast start;
Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability ;
With automatic over-current and output short circuit protection to avoid damage the equipment;
Temperature controlled fan,safe&efficient;
Safe and reliable with built in fuse.
1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of sockets are available).
Model	OPIP-2K-1	OPIP-2K-1	OPIP-2K-1	OPIP-2K-2	OPIP-2K-2	OPIP-2K-2
Rated power	2000W
Peak power	4000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	1.1A	0.7A	0.5A	1.1A	0.7A	0.5A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	USB port
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	397x180x78mm
Packing(mm)	500x240x150mm
Net./gross weight(g)	4100/4500g
QTY/Ctn	4 Pcs
Meas./Ctn(mm)	510x490x315mm
Gross weight/Ctn(g)	18200g
Warranty	1 years
Configuration	Standard
Cooling method	Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product
