High Pressure Tank Plastic Molding Equipment with Model up-128t

US$14,000.00 1 set (MOQ)

Basic Info.

Model NO.
UP-128T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Computer
Arcuchi PLC
Machine Weight
3.6t
Tank Volume
200L
System Pressure
16MPa
Transport Package
Film Packing
Specification
4.3*1.15*1.85
Trademark
UP
Origin
Chian
HS Code
8474809090
Production Capacity
500sets Per Year

Product Description

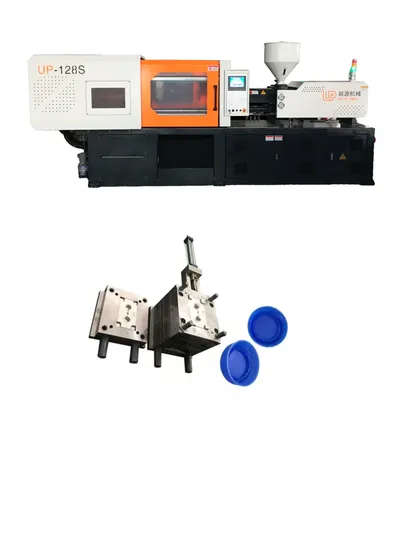

UP-128 Injection Molding Machine
UP-128 Injection Molding Machine
Features:
Servo type injection molding machine
More space between pull rods
Central clamping structure
Famous components
Servo motor energy saving
Low noise, 0.05 second fast response
High precision, stability, and long service life
T-groove pressing plate
Rich spare parts
Better price
Low water consumption
Low maintenance electrical and hydraulic
Reduce power consumption by up to 80%
Flow and pressure output control sensor
Clamping Device:
Optimized formwork design
High rigidity and large pull rod spacing
Platen Layout based on Europe
New ejection system design
Hydraulic drive gear type mold adjusting mechanism
Mechanical safety interlock device
Injection Device:
High-quality linear motion guide
High SpeedâȘ»essure injection structure
Double nozzle cylinder
Special screw barrel design
Hydraulic System:
Dual proportional composite valve
Imported high-quality water pump
Can be equipped with world-famous servo hydraulic system
Accurate feedback control of pressure and flow
Manufactured by Ningbo Union Power Machinery Co., Ltd.
Technical Parameters Model UP-128
Injection Unit A B C
Screw diameter (mm) 40 42 45
Shot Volume (cm3) 227 251 288
Injection weight (g) 204 1440 1636
injection pressure (Mpa) 203 226 259
Screw speed (rmp) 0-200
Clamping Unit
Clamping force (KN) 1280
Open stroke (mm) 360
Max Mold height (mm) 400
Min Mold height (mm) 150
Space between tie bars(mm) 420x380
Ejector force (KN) 38
Ejector stroke (mm) 100
Others
Pump pressure (Mpa) 16
Motor/driving power (KW) 11(11.5)
Heating power (KW) 7.3
Machine dimension (M) 4.3x1.15x1.85
Machine weight (T) 3.6
Oiltank cubage (L) 200
