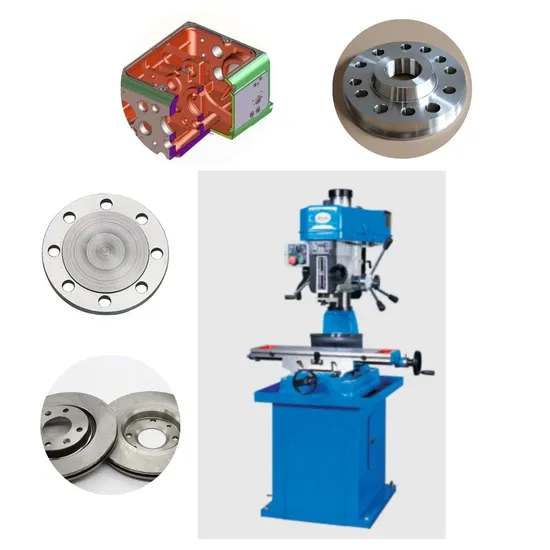

Universal Small Drilling and Milling Machine Zx7032

Product Description

Characters:
Gear hardened , large driven torque;B1 type optional 2-speed motor , wide spindle speed range.

Specification:

Model No.	ZX7032
Moving
Max.Drilling Capacity	31.5 mm
Max.face Mil Capacity	80 mm
Diameter of vertical milling	22 mm
Diameter of column	115 mm
Spindle
Spindle travel	130 mm
Distance spindle axis to column generating line	202 mm
Max.Distance spindle nose to table	460 mm
Max.Distance spindle nose to base	/
Spindle taper	MT3
Spindle speeds range	100~2150 r/min
Spindle speeds series	12
Spindle feeds	/
Dimension of worktable surface	730 ×210mm Standard 820 ×240 Optional
Table travel	450×170mm Standard 540 ×170 Optional
Dimension of base	/
Other
Overall height	1100 mm
Main motor	Single-phase 1100w Three-phase 1500w
Coolant motor	/
G.W/N.W	285/250kg
Packing dimension	86×74×124/97×77×124 cm
Packing dimension	86×74×116/97×77×116 cm
Standard accessories	Special accessories
Drill chuckΦ16mm	Milling chuck
Cutter Φ 80mm	Angle vice
Taper sleeve	Safety guard
Arbor	Stand
Drift
Wrench
Drawbar

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
