Basic Info.
Column number
Four Column
Automatic Grade
Automatic
Suitable Material
PP, PLA, Pet,BOPS,PVC, HIPS, Foam PS, etc
Transport Package
Wrapping Film
Product Description

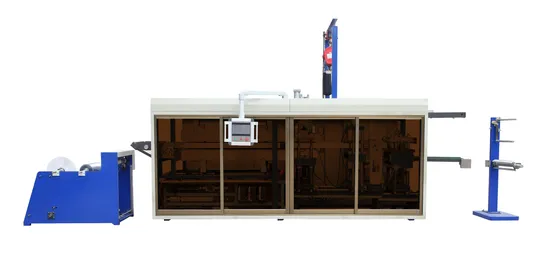

MODEL-500L MULTISTATION THERMOFORMING MACHINE
Plastic Lid for snack food tray forming machine
technical parameter:
| Model | MODEL-500L |
| Suitable Sheet | PP, PLA, PET,BOPS,PVC, HIPS, Foam PS, |
| Largest Forming Area | 500mm*400mm |
| Maximum Width | 520mm |
| Maximum Depth | 90mm |
| Power | 52Kw |
| Air Pressure | 0.6-0.8Mpa |
| Production rate | 10-30die/min |
| Depth of Sheet Material | 0.10mm-1.20mm |
| Weight | 5000Kgs |
| Overall Dimension | 4900mm*2000mm*2200mm(L*W*H) |
INTRODUCTION:
Model-500L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PP plastic products etc.
main feather:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
INSTALLENT: the all cost should be in buyer's side, as visa, two-way tickets, meals and accommodation, etc.
the buyer should pay 100USD/Day for salary.
>>
