US$500.00-1,000.00
|
5 Pieces
(MOQ)
|
Basic Info.
Maximum Lifting Height
20m
Certification
CE, ISO9001:2000
Transport Package
Plywood Case
Specification
300mm-2000mm
Production Capacity
300PCS One Month

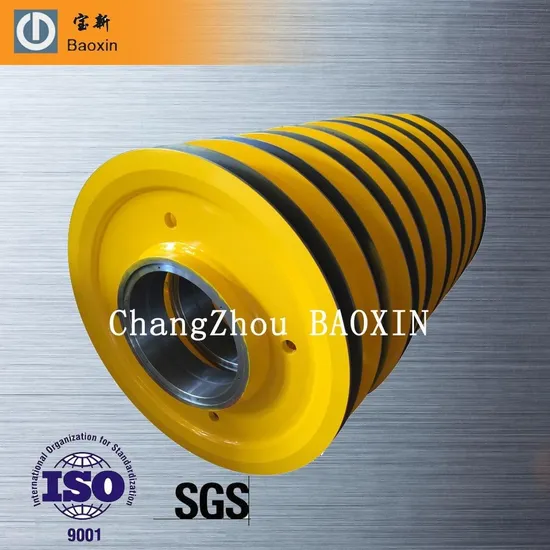

Product Description
Product Description
| Material | Q235B, Q345B, 35#, 45#, 60#, SSW-QR1, S45C |
| Groove surface quench | HRC45-55 |
| Groove surface quench depth | 2mm-2.5mm |
| groove MT after heat treatment and welding line UT and MT |
| Max processing diameter | 2, 000mm |
| Short production cycle |
| It is used for crane equipment, port equipment, oil drilling rig and so on. |
Product Parameters
| Code | Wire rope diameter(mm) | Main dimension(mm) D |
| Groove diameter | Outside diameter | R | Groove Width | Shaft diameter | Bearing hole width |
| BX1321 | 10-14 | 450 | 495 | 7 | 37 | 55 | 70 |
| BX2321 | >14-19 | 560 | 620 | 10 | 50 | 80 | 86 |
| BX3321 | >19-23.5 | 710 | 781 | 12 | 60 | 95 | 106 |
| BX4321 | >23.5-30 | 900 | 990 | 15 | 73 | 130 | 122 |
| BX5321 | >23.5-30 | 1120 | 1232 | 19 | 92 | 160 | 142 |
| BX6321 | >30-37 | 1250 | 1376 | 22 | 104 | 160 | 142 |
| BX7321 | >43-50 | 1600 | 1752 | 26 | 123 | 190 | 182 |
| BX8321 | >50-58 | 1800 | 1972 | 29 | 135 | 190 | 182 |
Detailed Photos
Application
Customer Visiting
Certifications
Packaging & Shipping
Sever&FAQ
Best Services For You
1) We can provide OEM service and design for you
2) We can pack the goods according to your requirement
3) We test the quality of all products before delivery
4) We guarantee our reply in 24 hours of working day
5) We can communicate with you in different languages
6) High quality, best price, punctual shipment, good after-sale service will be guaranteed.
FAQ:
Q: What information should I provide if I want to order the products?
1) Product information: Quantity, specification
2) Delivery time required.
3) Shipping information: Company name, address, phone number, destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: 30% -50%deposit, with the balance before delivery, we accept T/T and L/C at sight.
Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.
Q: How about sample & MOQ policy?
A: Welcome sample order. MOQ can be 1 set.
Q: What is your lead time for your goods?
A: Normally 30 days after confirmed order,
>>
