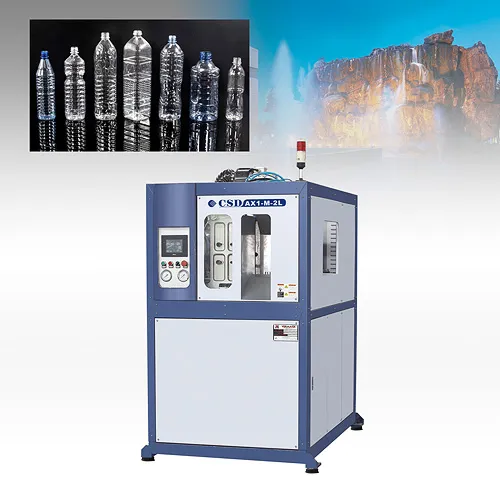

CE Approved with Ax Down Blow Series Automatic Blow Molding Machine (CSD-AX1-M-2.5L)

Product Description

Advantage:
1. Inventional patent design heating channel with side-open stand, convenient for heating lamps replacement and machine maintenance;
2. Compact setting preform holders, no chain moving, performs stay in heating channel for longer time heating, saving power consumption.
3. Imported PLC automation control enable non-stop machine parameter adjustment.
4. Suitable for auto production of oil bottles, jars, and irregular neck containers.
5. World famous brand pneumatic components.
6. World famous brand electrical components.
Model CSD-AX1-2.5L Blow Molding machine is with Automatic Preform Loading.
Model CSD-AX1-M-2.5L Blow Molding machine is with Manual Preform Loading.
The mainly different part had been showed in following picture.

AX SERIES BLOW MOLDING MACHINE
Item		UNIT	CSD-AX1-2.5L	CSD-AX2-2L	CSD-AX3-1.5L	CSD-AX4-1.5L
Cavity			1	2	3	4
Product volume		L	≤ 2.5L	≤ 2L	≤ 1.5L	≤ 1.5L
Recommend Production Capacity		Pcs/h	1100-1600Pcs/h Based on 500ml bottle, Preform Neck 28-30mm Weight: 17gram	2100-2400Pcs/h Based on 500ml bottle, Preform Neck 28-30mm Weight: 17gram	2900-3200Pcs/h Based on 500ml bottle, Preform Neck 28-30mm Weight: 17gram	3900-4200Pcs/h Based on 500ml bottle, Preform Neck 28-30mm Weight: 17gram
Max.Diameter of Product		mm	φ 120	φ 100	φ 90	φ 90
Neck Size of Product		mm	φ 15-φ 38	φ 15-φ 38	φ 15-φ 38	φ 15-φ 38
Useful Area of Mould Plate		mm	200× 350	300× 350	380× 350	480× 350
Mould Thickness		mm	200	200	200	200
Mould Stroke		mm	160	160	110	110
Clamping Force		Kn	120	120	120	210
Stretching Stroke		mm	450	430	430	430
Working Pressure		Mpa	0.8-1.0	0.8-1.0	0.8-1.0	0.8-1.0
Blowing Air Pressure		Mpa	2.6-3.0	2.6-3.0	2.6-3.0	2.6-3.0
Measurement of Main Blower		mm	1820× 1100× 1900	2280× 1500× 1900	2650× 1780× 1900	2810× 2000× 1900
Power of Preheater		Kw	32	36	70	72
		A	48	54	105	108
Power of Main Blower		Kw	3	3	5	5
Weight of Main Blower		T	1.5	2	2.5	3
Measurement of Conveyer		mm	2570× 2570× 2700	2570× 2570× 2700	2570× 2570× 2700	2890× 2570× 2700
Weight of Conveyer		T	0.2	0.2	0.2	0.2
HIigh Pressure Air Compressor Unit	Power	Kw	18.5	18.5 x 2	22 x 2	22 x 2
	Pressure	Mpa	3.0	3.0	3.0	3.0
	Discharging Capa.	m³ /min	1.5	3	4	4
Low Pressure Air Compressor Unit	Power	Kw	___	11	11	22
	Pressure	Mpa	___	1.25	1.25	1.25
	Discharging Capa.	m³ /min	___	1.6	1.6	3.0
Air Tank	Capacity	M³	___	0.6	0.6	0.6
	Working Pressure	MPa	___	3.0	3.0	3.0
Water Chiller	Cooling Capacity	Kcal/h	11900	11900	11900	24090
	CompressorMotor	HP	5	5	5	10
Air Filter Oil Filter Odor Removal Filter	Capacity	m³ /min	2	3	4	4
	Working Pressure	MPa	3.0	3.0	3.0	3.0

Item		UNIT	CSD-AX1-5L	CSD-AX1-M-5GAL	CSD-AX2-W-5L	CSD-AX2-M-10L	CSD-AX2-M-5L
Cavity			1	1	2	2	2
Product volume		L	≤ 5L	≤ 5GAL	≤ 5L	≤ 10L	≤5L
Recommend Production Capacity		Pcs/h	700-850Pcs/h Based on 5L bottle, Preform Neck 45mm Weight: 93gram	220-240Pcs/h Based on 5L bottle, Preform Neck 55mm Weight: 750gram	1400-1500Pcs/h Based on 5L bottle, Preform Neck 45mm Weight: 93-120gram	1100-1200Pcs/h Based on 5L bottle, Preform Neck 45mm Weight: 93-120gram	1400-1500Pcs/h Based on 5L bottle, Preform Neck 80mm Weight: 93gram
Max.Diameter of Product		mm	φ 170	φ 270	φ 180	φ 200	φ 170
Neck Size of Product		mm	φ 38-φ 45	φ 45-φ 60	φ 60-φ 120	φ 45-φ 60	φ 38-φ 45
Useful Area of Mould Plate		mm	240× 400	400× 570	420× 320	600× 460	550× 400
Mould Thickness		mm	240	400	250	300	240
Mould Stroke		mm	220	330	200	240	220
Clamping Force		Kn	240	300	300	300	240
Stretching Stroke		mm	450	660	380	590	450
Working Pressure		Mpa	0.8-1.0	0.8-1.0	0.8-1.0	0.8-1.0	0.8-1.0
Blowing Air Pressure		Mpa	2.6-3.0	2.6-3.0	2.6-3.0	2.6-3.0	2.6-3.0
Measurement of Main Blower		mm	2350× 1550× 1900	4200× 2000× 2300	3200× 2000× 1900	3200× 2000× 2200	3200× 2000× 2200
Power of Preheater		Kw	48	117	84	60	60
		A	72	175	126	90	90
Power of Main Blower		Kw	3	5	5	5	5
Weight of Main Blower		T	2	4.5	3.5	3.5	3.5
Measurement of Conveyer		mm	2570× 2570× 2700	___	___	___	___
Weight of Conveyer		T	0.2	___	___	___	___
HIigh Pressure Air Compressor Unit	Power	Kw	22 x 2	22 x 4	22 x 3	22 x 4	22 x 4
	Pressure	Mpa	3.0	3.0	3.0	3.0	3.0
	Discharging Capa.	m³ /min	4	6	6	10	8
Low Pressure Air Compressor Unit	Power	Kw	11	22	22	30	22
	Pressure	Mpa	1.25	1.25	1.25	1.25	1.25
	Discharging Capa.	m³ /min	1.6	3.0	3.0	4.0	3.0
Air Tank	Capacity	M³	0.6	2 x 2	0.6 x 2	2	2
	Working Pressure	MPa	3.0	3.0	3.0	3.0	3.0
Water Chiller	Cooling Capacity	Kcal/h	11900	11900	35200	35200	35200
	CompressorMotor	HP	5	5	10	10	10
Air Filter Oil Filter Odor Removal Filter	Capacity	m³ /min	1	6	6	10	8
	Working Pressure	MPa	3.0	3.0	3.0	3.0	3.0

About us Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.

---
