Product Description
Product Description

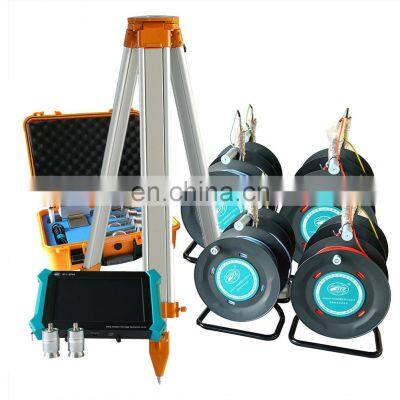

Product Usage and FeaturesU950/U960Non-metallic ultrasonic detectorUSAGE OVERVIEWU950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method forpile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.PRODUCT FEATURES1.Newly upgraded wireless cloud transmission function;2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.4.Full touch screen operation, simple, convenient, stable and reliable;5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;6.The deep recording wheel adopts dustproof and waterproof design;7.Large memory capacity, working time up to 10 hours or more;8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;9.U disk dump data, support software upgrade through U disk;10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.Technical ParametersProduct ModelU950U960Master control unitBuit-in A9 industrial control motherboardBuit-in A8 industrial control motherboardDisplay10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screenOperational modeTouch screenTouch screenStorage modeBuilt-in Electronic Hard Disk(>8GB)+Large Capacity U DiskBuilt-in Electronic Hard Disk(>8GB)+Large Capacity U DiskData transmission modeUSB, Wireless Cloud Transport(Options)Wireless Cloud Transport(Options)Acquisition modeSynchronous continuous rapid acquisitionSynchronous continuous rapid acquisitionOne-time section mumber36Channel number3（transmit and receive）4（transmit and receive）Trigger modeSignal triggeringSignal triggeringSampling period(μs)0.05~409.6 Multistage Options0.05~409.6 Multistage OptionsAcoustic time accuracy(μs)0.050.05Acoustic time range(μs)+1677700+1677700Width measurement functionRange: 0~10mmAccuracy: 0.01mmRange: 0~10mmAccuracy: 0.01mmDynamic range(dB)146146Bandwidth(kHz)1~5001~500Receiving sensitivity(μV)≤10≤10Emission voltage(V)65, 250, 500 and 1000 gears adjustable65, 250, 500 and 1000 gears adjustableCommunication UBS, Bluetooth, WifiUBS, Bluetooth, WifiWorking hours(h)More than 8More than 8Power supply modeBuilt-in lithium batteryExternal 220V~ 16V AC/CDBuilt-in lithium batteryExternal 220V~ 16V AC/CDWorking environmentTemperature(℃) -10℃~ + 40℃Humidity(RH) <90%Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%Host size(mm)300*200*55300*200*55Detailed ImagesIt is especially suitable for testing large-diameter piles, secant pile walls, and slurry-wall elements. If a defect is found, the steel tubes may be pierced at the corresponding depth and the pile repaired by grouting.Company IntroductionCangzhou Lovely Technology Co.,Ltd. Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.Packing & DeliveryAfter Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
