Product Description
Product Description

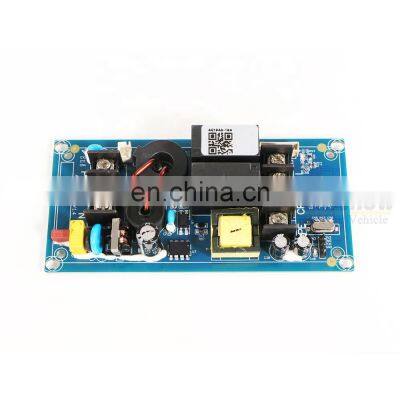

Product DescriptionPCBA Manufacturer Electric Car Charging Pile Mainboard PCB Assembly Control Circuit BoardAC16A3 Control boardAC16A3 Single-phase AC charging guidance system and multi-protection circuit board for new energy vehicles are independently developed by our company, using international major brands of master control chips and signal processing chips, in line with the relevant national standards of AC charging pile products.The module has a built-in high-performance MCU LED indicators are built - in and external version, display, LED light board size and position can be customized according to customer PCB temperature detection, input plug temperature detection, dual temperature detection function.Item NameElectric Car Charging Pile Mainboard PCBproduct modeGD2202-027(3.5KW-16A)Allow maximum power3.5KWAllow maximum current16AInput interfaceSingle phase AC：L、N、PEOutput InterfaceSingle phase AC：L、N、PECP signalsFrequency, duty cycle, magnitude,see appendix A for detailsProtection functionSee Appendix B for details of protectionWorking voltage175-265VPCB size137*66*25mmWorking temperature-25~55℃Working humidity<95％ RH no condensationDielectric strengthInput - ground, output - ground :2000V ac,60SInsulation impedanceInput - ground, output - ground :500V dc,>10MAdvantage1.OLED screen Easy installation2.High speed charging3.Small size,Easy to transport4.Multiple security protection5.Certified by authorities(CE,RoHS)6.Real-time monitor on temperature7.High resistance to cold/high temperatureEnvironmental indexApplicable sceneindoor / outdoorWorking temperature-30℃ ~ +55℃Working Humidity5% ~ 95% no condensationWorking altitude<2000mCooling Typenatural coolingStandardEN 61851-1-2001,EN 61851-22-2001MTBF50,000 HProtection FunctionOvervolatge protection265VUndervolatge protection175VLeakage protection30mA(Type A),(TypeB opt)Overcurrent protection≥110% rated outputOvertemperature protection80℃Grounding protectionYesLightening protectionYesCompany ProfileHansshow, established in 2018, is an innovative enterprise focus on research, production, sale and service of Electric tailgate, yoke steering wheel,Auto Soft door close, Real dry carbon fiber parts, Auto led taillight, Electric sliding door, Active sound system, Carplay display screen and etc.Our factory area up to 5000 square meters, stuff more than 60 people and we also have obtained C E and ROSH certificates. the company own considerable development and get proud sales results, clients come from 130 countries and nations.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, Europe, south America East-middle, Asia and other regions.Packing & DeliveryDelivery Way:Express shipping: DHL/Fedex/UPS/TNT;Cargo shipping:Air Flight/Sea shipping;Delivery Time:Delivery within 7 days after payment;Our Services:1.24 hours online service, please feel free to contact us.2.Support wholesale, OEM group purchasing，Factory direct sales with good prices.3.Over 500 installation points in 26 different countries. Send enquiry to us now. vide product installation video,Product installation engineer online technical guidance.
>>
