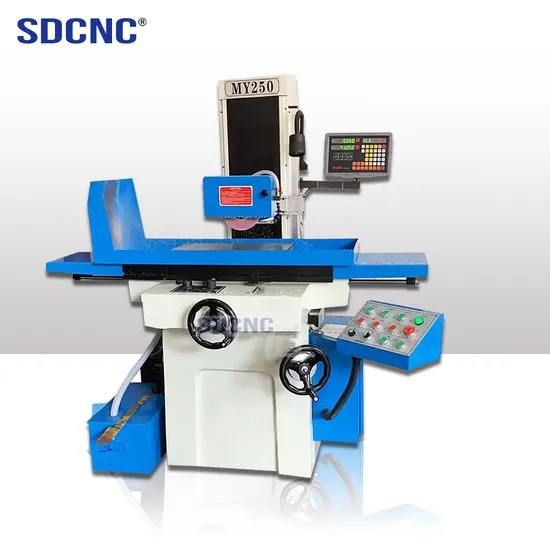

MY250 Hydraulic Metal Rotary Round Table Centerless Cylinder Head Surface Grinder Machine

Product Description

SPECIFICATIONS

technical specifications		MY250
The grinding wheel size (o. d * w * i. d.)		250*540*420
Maximum longitudinal movement of the working table		500
Maximum horizontal displacement of the working table		200
Maximum distance from working table to spindle center		420
Slide table		V Flat rail
Table maximum load		200
Table size (length * width)		250*500
Table T type slot		14×1
After the feed hand wheel		0.02/grid 2.5/round
Start feed wheel		0.01/grid 2.0/round
Feed Rate		0.002mm
Digital Display		0.001
Grinding wheel size (outer diameter * width * inner diameter)		200*30*31.75
Spindle speed	50Hz	2850
Main motor		1.5
Cooling pump		40
The surface of the base of parallelism		300:0.006
Surface roughness		Ra0.32
Machine tool overall size (L * w * h)		1.25*1.4*1.8
Gross weight, net weight		0.95

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool

---
