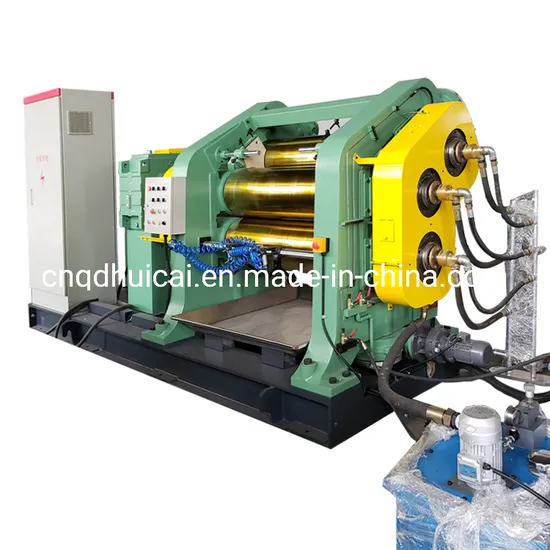

Three Roll Rubber Calender

Product Description

It mainly consists of roller, rack, backplane, adjustment device, transmission system, roller temperature control device, security device, lubricating device.
Feature:
Roller: Is made of Chilled Cast Iron alloys, whose work surface has high hardness, wear-resistance and durable life.
Rollers' gap adjustment: Manual or electric mode
Roller bearings' lubrication: Dry oil or thin oil by manual or electric mode
Bearing bush: Nylon sleeve, copper sleeve or double row spherical roller bearing
Motor: Ordinary or frequency motor
Reducer: Hard tooth surface reducer
Applications: This machine is mainly used for both natural and synthetic rubber's plasticating, mixing, warming and sheeting.
Processing: Thermal mixing of batches and finish squashing. Also it can be used for plastic industry and pigment industry as subsidiary application (PVC).
1. Waste tyre recycling line
2. Rubber products processing line(tyres, shoes, handbags, latex gloves, sport balls, mousepad, conveyors, rubber sheets&tiles, rubber band, seals, insulation boards, etc., )
3. Plastic runway and artificial grass production line
Safety device: Safety covers, brake hold, emergency stop botton, foot brake, brake knee, waist brake, hand trolley (details according to your requirements)

Type	Roller dia *Length (mm)	Mid-roller Liner velocity (m/min)	Min. thickness for calendering (mm)	Calendering width (mm)	Motor Power (KW)	Overall dimension (L*W*H)	Weight (t)
XY-3F300	300*900	0~17	≥0.2	≤500-700	22	3700*1280*2050	6
XY-3F360	360*1120	0~23	≥0.2	≤700-1000	40	4700*1700*2100	11.6
XY-3F400	400*1400	0~22	≥0.2	≤1000-1200	55	5200*1860*2100	15
XY-3F450	450*1500	0~25	≥0.2	≤1000-1300	90	6400*2200*2900	20
XY-3F560	560*1700	0~31	≥0.2	≤1300-1400	110	6950*2600*3700	38
XY-3F610	610*1730	0~30	≥0.2	≤1500	132	7500*2700*3830	45

---
