Advanced V855/V850 Linear Guide Machining Center for Professionals

Product Description

Product Description

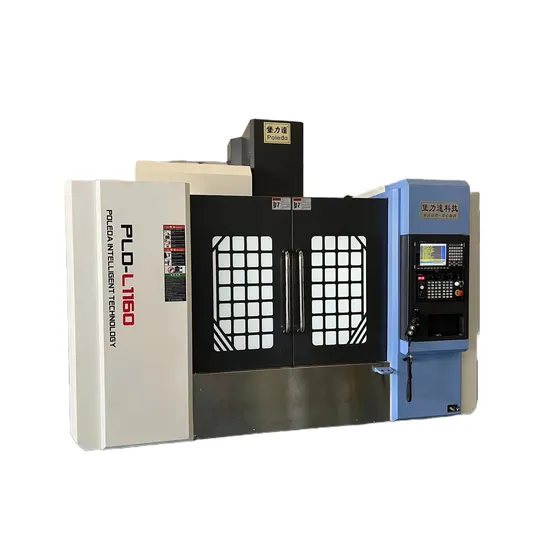

V series linear guide machining center
This product features X, Y, Z three-axis servo direct control in a semi-closed vertical machining center. It boasts three-axis linear ball guides with a wide span and high load capacity, ensuring unparalleled precision and stability. Engineered for heavy-duty performance, it has a compact and well-thought-out structure. The spindle, driven by a servo motor and a timing belt, guarantees seamless operations. The machine adeptly handles the clamping of diverse parts like discs, boards, housings, cams, and molds, all in a single setup. It excels in various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping. Perfect for producing medium to small batch products, it meets the exacting demands of complex, high-precision part manufacturing. Additionally, it can be equipped with a fourth rotary axis to accommodate unique processing requirements.
CNC Control System
The system offers comprehensive and reliable interlock, safety protection, fault diagnosis, and alarm functions. It is outfitted with an RS232 standard and a network communication interface, alongside computer program control and storage capabilities, facilitating DNC processing. Note that specific features may vary depending on the system version.
Product Parameters
Vertical Machining Center Product Introduction
The vertical machining center is a highly advanced and automated multi-functional CNC machine tool. Equipped with a tool library and automatic tool-changing device, it features a spindle axis set vertically with the workbench. This design is ideal for processing plates, molds, and small, complex components. Capable of milling, boring, drilling, tapping, and thread cutting, it uses a digital control system to automate tool selection, spindle speed adjustments, feed rates, and more, efficiently completing multi-process tasks on multiple faces of a workpiece. This ensures a substantial boost in production efficiency.
Product Features of Vertical Machining Centers Include:
Simple Structure: Compared to horizontal machining centers, vertical machining centers boast a simpler design, occupying less space and offering a more cost-effective solution.
Convenient Workpiece Clamping: With easy clamping and positioning, the vertical machining center's tool movement is straightforward to monitor. This simplifies debugging, inspection, and measurement processes.
Superior Cooling Conditions: Cutting fluid can directly reach both the tool and machining surface, which significantly enhances processing quality and efficiency.
Easy Chip Removal: The three coordinate axes align with the Cartesian coordinate system, enabling easy and efficient chip removal, thus preventing surface scratches.
Versatility: Vertical machining centers typically offer at least three-axis two-linkage, with many models achieving three-axis three-linkage and even five- or six-axis control, catering to a variety of complex machining requirements.
Applications: Vertical machining centers find extensive use in aerospace engine and structural parts manufacturing, automotive engine parts production, mold processing, home appliance manufacturing, energy equipment production, and more.

ITEM	TYPE	V650	V850	V855	V857	V1160
Axis travel	LEFT TO RIGHT(X)(mm)	650	800	800	800	1100
	FRONT TO BACK(Y)(mm)	400	500	550	550	600
	UP TO DOWN(Z)(mm)	500	500	550	700	600
WORKTABLE	DIMENSION(mm)	800×400	1000×500	1000×550	1000×550	1200×600
	MAX LOAD (kg)	350	500	600	600	800
	T TYPE(WIDTH×SLOT NO.)	3-18×125	5-18×80	5-18×90	5-18×90	5-18×100
DISTANCE	Spindle center to cloumn(mm)	460	560	613	613	645
	Spindle nose to work bench(mm)	100-600	120-670	150-700	150-850	175-775
SPINDLE	HOLE TAPER	BT40	BT40	BT40	BT40	BT40
	SPEED (rpm/min)	10000	direct connection12000	10000	10000	10000
	MOTOR POWER(kw)	5.5	5.5/7.5	7.5/11	7.5/11	7.5/11
FEED SPEED	X/Y/Z RAPID FEED SPEED(m/min)	48/48/48	48/48/48	36/36/30	36/36/30	36/36/30
	CUTTING FEED SPEED(mm/min)	1-10000	1-10000	1-10000	1-10000	1-10000
Tools	MAGAZINE CAPACITY(pcs)	20	24	24	24	24
	MAX.TOOLS ALLOWABLE WEIGHT(kg)	8	8	8	8	8
	MAX.TOOLS ALLOWABLE LENGTH(mm)	300	300	300	300	300
	TYPE	ARM	ARM	ARM	ARM	ARM
MACHINE	DIMENSION(mm)	2400×2150×2560	2600×2250×2660	2650×2300×2700	2650×2300×2900	3000×2400×2900
	WEIGHT(kg)	4000	4800	5500	5900	6800

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, and other customization. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining the highest quality levels. The principle we always uphold isto provide customers with better quality, better prices, and better service.
3.What's your main products of your company?
A: We specialize in a wide array of machines, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: We accept Ex-works, FOB, CFR, and CIF.
5.What's the Payment Terms?
A: T/T, 30% initial payment upon order, 70% balance payment before shipment.
6.What CNC system do you use?
A: We use FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN systems. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Send us your product drawings and application details. We will help you select the most suitable machines.
8.What kind of package do you offer?
A. Normally, we package in plywood cases to ensure all goods are in excellent condition. Customized packaging is also available.
9. Can your plant do OEM?
A: Yes, we can do both OEM and ODM for any customer requirements.
10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we offer lifetime service for the machines.

---
