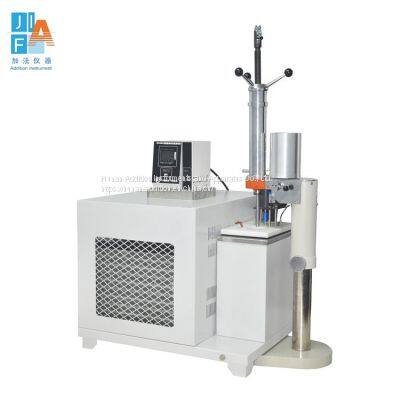

Lubricating Grease Relative Viscosity Tester
Product model: JF0048
Instrument introduction
This instrument uses an automatic capillary viscometer to measure the similar viscosity of the sample, which is mainly suitable for lubricating grease. The viscosity of grease at a certain temperature is a variable that varies with shear rate and is called analogous viscosity. Using the spring to act on the sample tube of the ejector rod, the sample is subjected to pressure and flows out from the capillary. With the relaxation of the spring, the pressure in the tube gradually decreases, and a series of similar viscosity values at the average shear rate can be obtained.
Technical Parameter
1. Applicable standard: [OC] 7163 SH/T0048
2. Capillary diameter: Φ0.5, Φ1, Φ2mm
3. Recorder speed: 0.0111, 0.195, 3042r/min
4. Temperature control range: -50～50℃±0.1
5. Refrigeration method: dual compressor refrigeration
6. Heating method: electric heating tube heating
7. Circulation method: magnetic pump circulation
8. Working power supply: AC220,240V 50,60HZ
9. Power of the whole machine: 1500W
10. Instrument size: 750*430*630mm
11. Net weight: 49KG
Main Feature
1. Capillary viscometer with reasonable and compact structure;
2. The magnetic circulating pump transmits the medium without noise;
3. Stainless steel medium bath body;
4. Microcomputer temperature controller, digital display, accuracy ±0.1℃;
5. Fully enclosed compressor refrigeration to ensure the supply of cooling capacity;
6. Integral structure, easy to move.

---
