Mini Concrete Beneficiation Machine PE Jaw Crusher Lab Jaw Crusher

Product Description

Mini Concrete Beneficiation Machine pe Jaw Crusher Lab Jaw Crusher
1.Product Description of Lab Jaw Crusher

Product Name	Lab jaw crusher
Suitable for	Crushing Ores and Stone
Color	Customizable

Lab jaw crusher is widely used in mineral, quarry,building materials, road, railway, water conservancy and hydropower. Lab jaw crusher is used for primary crushing of hard rocks and block materials.crusher machine is equipped with high-chromium plate hammer with unique structure and impact plate with special shape, which is suitable for crushing of hard rock with energy saving.

	Description of uses Lab Jaw Crusher is used for primary crushing of hard rocks and block materials.crusher machine is equipped with high-chromium plate hammer with unique structure and impact plate with special shape, which is suitable for crushing of hard rock with energy saving.
Description of application effect (1) Simple structure; (2) Large crushingratio; (3) High capacity; (4) Even particles; (5) Convenient maintenance; (6) Low productioncost and so on.

2. Working Principle of Lab Jaw Crusher

The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

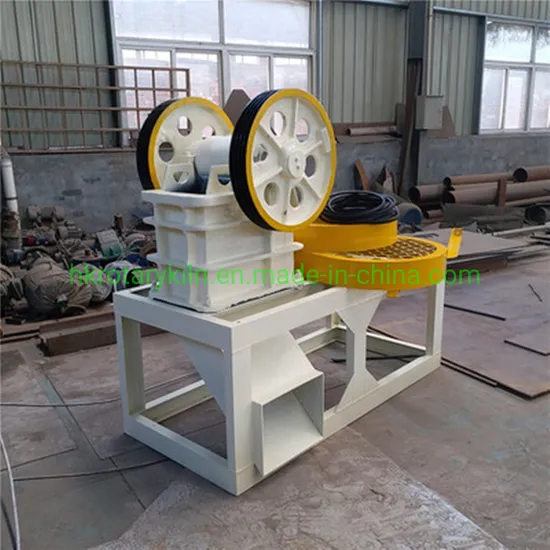

3.Factory Pictures of Lab Jaw Crusher
4.Size Information of Lab Jaw Crusher

Model	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor Power (kW)	Dimensions (mm)	Weight (t)
PE150X250	125	10-40	1-3	5.5	720x660x850	0.8
PE250×400	200	20-60	5-20	15	1150×1275×1240	2.8
PE400×600	350	40-100	15-60	30	1700×1732×1653	6.5
PE500×750	425	50-100	50-100	55	2035×1921×2000	10.3
PE600×900	480	65-160	60-130	75	2290×2206×2370	16.5
PE750×1060	630	80-140	80-180	110	2620×2302×3110	29
PE900×1200	750	95-165	140-260	110	3789×2826×3025	54.5
PEX250×750	210	25-60	10-40	22	1667×1545×1020	5
PEX250×1000	210	25-60	15-50	30	1550×1964×1380	6.5
PEX250×1200	210	25-60	20-60	37	1560×2104×1415	7.7

5.Packing&Shipping of Lab Jaw Crusher
The jaw crusher packing can be stamder wooden case ,we will change the package accroding your demands ,and delivery by ship ,reilway,airplane or way accroding your requirement.

6.Company Introduction

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!

7.FAQ

1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.--------------------------------------------------------------------------------------
Kindly Note: 1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Final mesh size (mm)
4). Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.

---
