Basic Info.
Structure
Three-Dimentional
Hole Diameter
Top 50mm, left and right 40mm
Automatic Grade
Automatic
Certification
GS, ISO 9001
H-beam section height
150-1250mm
H-beam section H section width
75-700mm
U-beam section height
150-1250mm
U-beam section width
75-350mm
Maximum thickness of workpiece
80mm
Spindle motor power
18.5kw
Motor common rate of left and right unit
15kw
Spindle speed (stepless speed regulation
20-2000r/min
Servo motor torque of feeding trolley
5kw
Maximum feeding speed
20m/min
Maximum feeding weight
15ton
Hydraulic station motor power
4kw
Transport Package
by Pallet and by Wood Box
Product Description

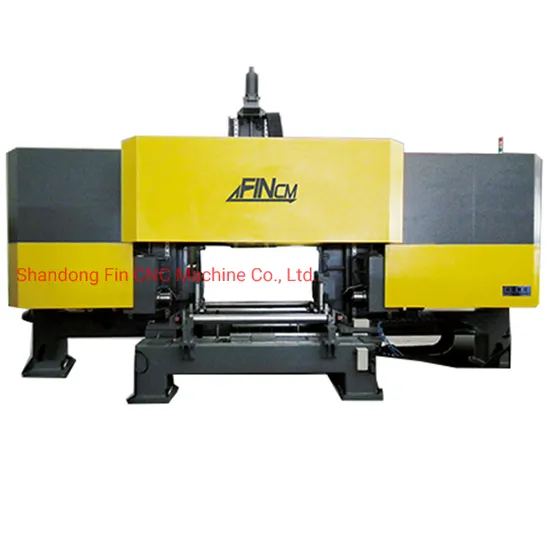

product description:BHD1207A/3
The equipment combines drilling, typing and cutting. It has the characteristics of good processing quality, high production efficiency, saving plate, reducing workshop area and labor force. It is mainly used in plate processing of steel structure, agricultural machinery, engineering machinery, shipbuilding and other industries.
Company Profile:
work process:
Sales network:
OUR SERVICE OR FAQ:
1. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's in- stallation,commissioning and operation training.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
4. When can you arrange shipment?
For machines availablein stockthe shipment can be arranged within 15 days
after getting advance payment or L/C;For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
4.what can you buy from us?
CNC Angle Line/CNC Beam Drilling Sawing Machine/CNC Plate Drilling Machine,CNC Plate Punching Machine Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
>>
