Product Description
Product Description
Product Description

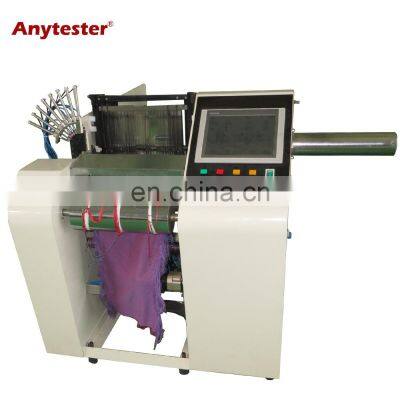

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Features
★ PLC control touch screen with 2G memory capacity to store designed patterns;
★ Designable and editable patterns and USB interface to share designed patters;
★Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;
★ Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★ Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
★ Heald frames up to 20pcs, easy to mount and dismount;
★ Automatic pneumatic selection of weft yarns up to 8 colors;
★ Professional software for designing or editing patterns;
Specification
Model
| AT248
|
Reed width
| 12inches (16, 20, and 24inch, optional)
|
Yarn linear density range
| 5~500tex
|
Weft density
| 30~45weft/min, selectable
|
No. of heald frame
| 4~20
|
Color selection
| 8 color, automatic pneumatic control
|
Let-off
| Active electronic control
|
Take-up
| Motor control
|
Shedding
| Dobby shedding, pneumatic control
|
Beating-up
| Motor control
|
Air pressure
| 0.45~0.8Mpa
|
Air consumption
| Max. 200L/min
|
Power
| A220V 50Hz, single-phase
|
Packing & Delivery
Packaging
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
| 30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
| 30% T/T in advance,paid the balance against copy of B/L
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
| Amount lower than 50,000usd
|
Delivery Time
| 7~10 days after receiving payment for one container
|
