Product Details
Product Description
Product Description

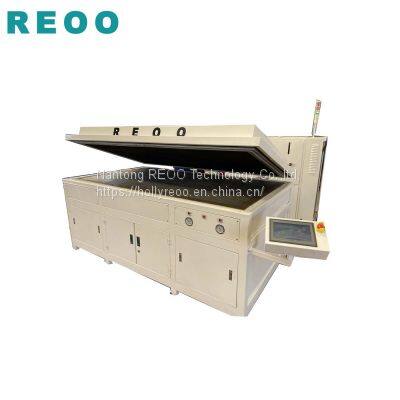

Full Automatic Solar Panel Laminator
Product Description
As the equipment of manufacturing solar module limited to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet.
Parameter
| Laminated Size
| Outline Size
(MM)
| NW
(T)
| Power (KW)
| Pump
| Annual Output
|
Model
| Max
| Working
| Speed
|
RO-Q1
| 3600×2000
4 PCS of module one time
| 14000mm*2800mm*1380mm
| 15.8
| 75 | 8-10
| 70 L/S
| 50MW
|
Heating Mode
| Oil Heating
| Power Supply
| AC380V Triphase five Wires
|
Control mode:
| Full automatic
| Demension
| 14000mm*2800mm*1380mm |
Laminating Time
| 2-4mins (excluding curing time)
| Temperature Control
| Intelligent PID Temperature Control
|
Temperature Precision
| :≤ ±1.5 ℃
| Environmental Temperature
| 0℃-50℃
|
Temperature Range
| 30℃-180℃
| Temperature Uniformity
| ±2℃
|
Module Height
| 25mm
| Air Supply required
| 0.6-1.0MPa
|
Vacuuming time
| 90 seconds
| Compressed air flow required
| 50L/Min
|
Detailed Images
Product details
Our Clients
Packing & Delivery
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 20 - 45 days after received the advance payment.
Shipping way:Sea shipping
Our Services
Installation:
We arrane our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production, buyer pay for the cost.
Company Information
REOO Technology Co.,Ltd., is expert at a wide range of solar panel production lines, solar panel connectors, solar panel cables connectors as well as solar power system. We provide one package service, including design, producing, export, site installations and technical guidance and after-sale service as well.
Our factory is located in Nantong, Jiangsu province of China. It is 2 hours to Shanghai by vehicle. REOO together with SUNTECH, HANWA SOLAR, and QS SOLAR bring the technologic innovation superiority of the industrial cluster into full play.
Our senior technicians are familiar with ISO quality management system, and have strong sense of continuous improvement and responsibility. Our products enjoy competitive price, and have a ready market in USA, South Amercian, Europe, Australia, UK, Spain, Korea, Japan, Malaysia, India, Bangladesh, Vietnam and so on.
Please feel free to contact us if you are looking for a trustworthy source of solar panel machines and accessories. We take superior technical support and customer service as our integral parts of our offering. Any of your enquiries will be highly concerned and will be dealt with immediately. Your satisfaction of our products and services will be guaranteed.
