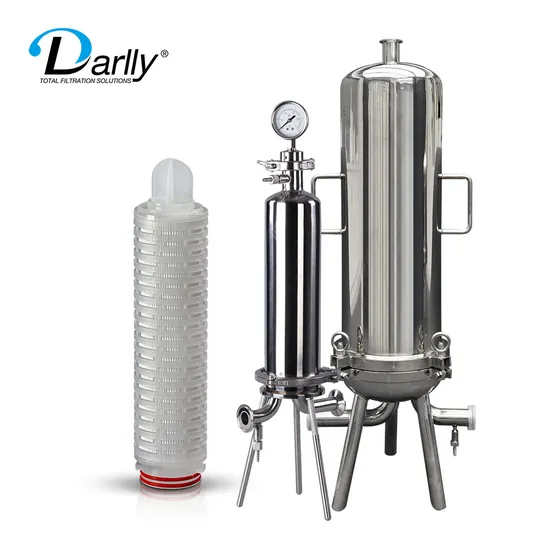

Multi-Round Stainless Steel 316L Liquid Filter Housing with Micro Pleated Filter Cartridges 10"/20"/30"

Product Description

Multi-round Sanitary Liquid Filter Housing can meet the use of large flow sanitary working conditions and different specifications of filter elements can be configured according to different flow rates. The crevice-free welding and sanitary design, make the housing drain thoroughly and easy to clean and disassemble. The Internal surface can be finely polished up to 0.3μm.
Applications
· Pharmaceuticals: filtration of injections, antibiotics and other biological products
· Food and beverage: filtration of alcohol, beverage and drinking water etc
· Petrochemical industry: filtration of oilfield water, organic solvents, acid and alkaline liquids etc
· Microelectronics: pre-filtration of high-purity water
Features
· Ultra-high polishing level, internal: Ra≤0.3μm, external: Ra≤ 0.4μm
· It meets GMP standards, adopts crevice-free welding and sanitary design, easy to clean, no residual liquids
· Vent valve adopts tri-clamp which makes it more convenient to use
· Body connection adopts strengthened clamp, max. operating pressure can reach 1.0MPa
· The filter faceplate can be made detachable for full-angle cleaning
· Suitable for CIP and SIP
Product Specifications

Materials	Filter Shell	Stainless Steel 304, Stainless Steel 316L
	Vent Valve	Stainless Steel 304, Stainless Steel 316L
	Eyebolt	Stainless Steel 304
	Stabilizer Blade	Stainless Steel 304
	Seal Material	Silicone, FKM, EPDM
Surface Finish	Finish Type	Passivated, Electropolished, Mechanical polishing
	Polishing Type	Internal: Ra≤0.3μm
		External: Ra≤0.4μm
Operating Conditions	Design Pressure Option	0.6Mpa (6bar), 1.0Mpa (10bar)
	Max. Operating Temperature	150ºC
Connections	Shell Connection	Flange eyebolt
	Inlet & Outlet	Tri-clamp / Flange
	Vent Valve/Drain Valve	Inner bole 4mm, connect with 8mm pipe
	Pressure Gauge (Option)	TC-1.5"

Drawing
Dimensions
Ordering Information
