X86 Industrial Embedded Mainboard Linux System/Android Motherboard for Internet/Medical Equipment

Product Description

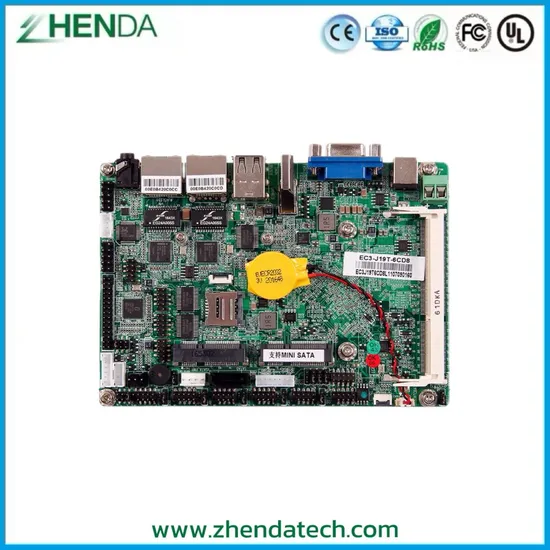

Product Description UEC3-J19T-6CD8 Industry Embedded Motherboard
UEC-J19T-6CD8 motherboard adopts the J1900 Quad-core 2.0GHz CPU supports windows7/8/10, Linux system, the max turbo frequency is up to 2.4GHz. With high-definition display interface and multiple COM interfaces, USB interfaces, various application interfaces, the board meets the needs of many application senarios and provides a variety of work efficiency.
Model No. Category Processor Chipest GPU Display output Memory Audio Network Storage Expansion Slot USB COM Rear I/O Internal I/O BIOS power supply Cooling System Operating Temperature Operating Humidity Size

UEC3-J19T-6CD8

X86 Motherboard

Support Baytrail J1900/J1800/N2807 Processor

Intel J1900/J1800/N2807

Intel CPU Built in Display Core

VGA,HDMI,LVDS

1*SO-DIMM,DDR3L 1333MHz ,8GB

Onboard Realtek ALC662 HD

Onboard 2*Intel 82583V Gigabit LAN

1*SATA2.0 1* MINI-SATA

1*MINI-PCIE(for WIFI ) 2*SIM(External Lead)

1*USB3.0 9*USB2.0

6*COM (Need to be extended)(COM2 Supports 232/485,COM1 Supports TTL/232)

1*USB3.0 1*USB2.0 1*VGA 1*HDMI 2*LAN 1*DC 1*AUDIO

4*F-USB2.0 PIN(Could be extended 8*USB2.0) 6*COM-SET PIN 6*COM PIN 1*LVDS PIN 1* PS/2 PIN 1*F_AUDIO PIN 1*F_PANEL PIN 1*AUTO-ON PIN 1*SYS-FAN PIN 1*SATA-PWR PIN 1*SPEAKER PIN 1*JME PIN 1*J485 PIN 1*GPIO PIN

AMI BIOS

DC+2*PIN9~24V power supply

Comes with CPU cooler

'-10~60ºC

0% ~ 95% Relative Humidity,Non- condensing

146X102MM

Our Services Customers may easily reach out for help with anything from demand to prototype to mass production, delivery, and after-sales through technical support services.
Pre-sales guide - Provide appropriate solutions according to the performance and functions;
Custom kernel - Android and Linux operating system support;
App adaptation;
Testing and adaptation of third parties;
Custom driver;
Mass production - Offer production tools, testing tools, patches, etc.;
After-sales analysis.
Company Profile Shenzhen ZhendaTechnology Co., Ltd was founded in 2005,we are a manufacturer who are specialized in PCB Assembly (SMT, DIP, AI) and electronic product final assembly (EMS) in the top market for global customers with ISO9001, ISO13485, ISO14001, IATF16949 certification.
We also focuses on embedded ARM platform solutions in the field of AIoT and AI, and provides a series of ARM motherboards and hosts.
The product direction covers smart commercial display, smart retail, smart medical care, smart transportation, access control intercom, industrial Machine vision, robot control, security video analysis and other related industries.
Our Advantages Founded in: 2005
Certifications: ISO13485, IATF16949, UL, CE, RoHS, etc.One-Stop OEM PCB Assembly Professional Turnkey PCBA: providing professional PCB design, R&D prototyping, PCBA mass production, component procurement, electronic product assembly, testing, PCBA conformal coating and supporting services for electronic and electrical products peripheral products such as wire harnesses, plastic injection, sheet metal, etc.
IP Protection: Strong believe in IP protection with proven records.
Certifications 1. IATF16949 for manufacturing Printed Circuit Board Assembly(PCBA);2. ISO9001 for production of PCBA;3. ISO13485 for production and sales of PCBA for medical products such as hemodialysis, ward care, ultrasound imaging, meridian physical therapy.4. ISO14001 for production of PCBA and its relative environment management activity.
Packaging & Shipping Packing: Bubble packing&paper carton&pallet, or customized packing as your request.Delivery time: Generally it is 4-9 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock it is according to quantity.Professional goods shipping forwarder.
FAQ 1. Is Zhenda a factory or simply a trading company?We are a TRUE OEM/ODM factory. Our facotry is in Shenzhen, welcome to visit our factory at any time.2. What payment methods are available to me?We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.3.How long is the warranty time?1 Year.4. Do you provide samples ? is it free or extra ?Yes, we could offer the sample, but need to pay the cost.

---
