Sjsz-65/132 Wood Plastic Composite WPC Machine for Decking

Product Description

PP/PE/PVC WPC wood plastic composite profile extusion machine line
---Turn key project with CE certificated most professional wpc machine manufacturer in china

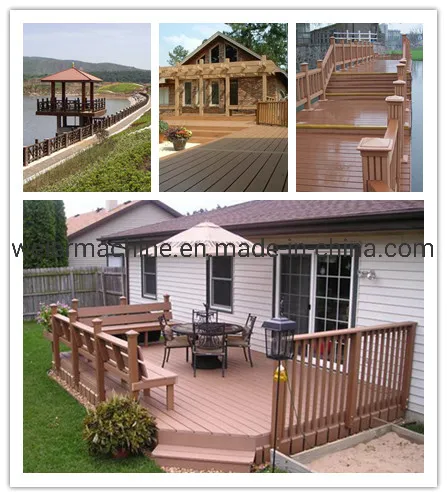

weier series wood plastic composite wpc profile machine production line mainly use pvc/pe recycle+wood powder, producing skirting, window and door frames, furniture edge, door pocket, decorative profiles, etc.
The wpc line use our original wood plastic technique and formula, design the proportion of different wpc products according to their different profile section, usage, etc.

1. Equipment list for the wood plastic wpc profile machine

1.1	Twin Screw Extruder SJSZ-65	One set
1.2	Vacuum Calibrating Table	One set
1.3	haul-off machine	One set
1.4	Automatic Cutting Machine	One set
1.5	Tilting table	One set

2. Summarization for the wpc wood plastic profile machine
2.1 Suitable resin PVC resin+wood powder+additives, as per our special formula
2.2 Line speed Max 4 m/min
2.3 Max output 150 kg/h
2.4 Outer dimension 24 * 1.5 * 2.6 m
2.5 Weight 11 T
2.6 Total power 89 kW
2.7 Power supply 380V± 10%, 50Hz; Controling power supply: 220V± 10%

3. Equipment component for the wpc wood plastic profile machine:
(1) conical twin screw extruder SJSZ65/132

(2) extrusion mould for profiles (sample)

(3) vacuum sizing platform

(4) haul off and cutter

(5) reversal stacker

(6) door and window profile samples: And other profiles


4. Guarantee:
We will realize guarantee of repair; Replacement and refund of substandard products within one year after the machine arrived in customer's factory (except destroyed by buyers' wrong operation). We guarantee the material of screw&barrel (guarantee without normal abrasion). And half a year for electric parts. Fittings of the machine will supply at preferential price after one year.

---
