Excellent Performance Single Axis Vertical Column Mobile CNC Milling Machine, Milling Machinery for Reaming Processes

Product Description

Product Description
Structural characteristics
Tank needle is one of the key parts of textile machinery, we developed XC-7 multi slot needle bed CNC machine tools, is a special CNC machine tools for each face processing groove needle bed design, can also be used for other parts of processing machinery.. The machine can realize the milling,drilling, boring, reaming and tapping processes. The machine increases a plurality of milling head device can automatically finish milling through all the needle groove manual tool changing.
Y axis, Z axis guide rail adopts slide quenched and plastic, good rigidity, stable and reliable.
X axis, Y axis, Z axis adopts Germany 1+F high precision ball screw
Spindle components: spindle is made of alloy steel. Group main shaft bearing and screw support bearings are imported bearing (NSK).
The tool clamping and loosening: spindle with automatic broach mechanism.
The control system of the machine tool used in Japan FANUC company products, with independent electrical box and the installation of air-conditioning equipment.
Machine adopts wet processing, with independent water tank. Chip machine for automatic spiral chip chip.
Product Parameters

ITEM	UNIT	XC-7
Table size (length * width)	mm	7000×400
Spindle speed	rpm	20~2000
Distance from spindle to table	mm	100~600
Distance from spindle center to table center	mm	±200
X axis travel	mm	7000
Y axis travel	mm	400
Z axis travel	mm	500
Taper of spindle		BT50
Spindle motor power	kw	7.5
X, Y,Z axis feed speed	mm/min	1~3000
X, Y,Z axis rapid movement speed	mm/min	3000
X axis positioning accuracy	mm	0.02/1000
Y axis positioning accuracy	mm	0.02/500
Z axis positioning accuracy	mm	0.02/500
Repeat positioning accuracy of X axis	mm	0.015
Repeat positioning accuracy of Y/Z axis	mm	0.02

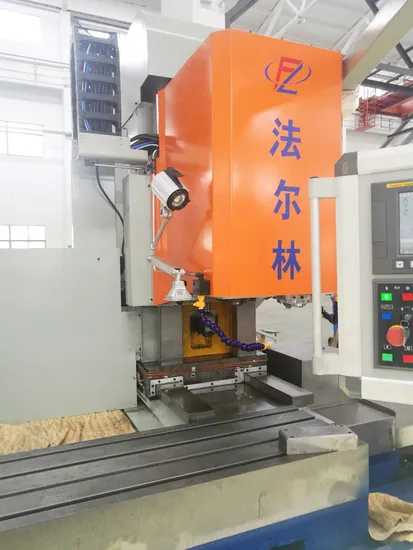

Detailed Photos
Recommended products

Company Profile
1.General Information
Changzhou Faer Lin Precision Machine Co., Ltd. is located in Bingjiang economic development zone, new north district, Changzhou , Jiangsu, China. The whole plant area is 30006m2 with 15000m2 construction area.
Our business grows dramatically during the past 5 years that the sales revenue develops from RMB 5 million in 2012 to RMB 50 millions around in 2016.
The company was evaluated as Jiangsu high-technology enterprise in 2015, that we have 22 high-technology products and more than 20 patented technologies.
Faer Lin is dedicated to build first-class technology developing system and train a expert team, in order to produce reliable automatic line and CNC special machine with high accuracy and high efficiency.
2.Company Team
Our shareholders and management team members are excellent talents from Jiangsu Duoleng CNC machine Co., Ltd.(Former was Changzhou General Machine Factory) who has more than ten years good experience in state-owned company management, product design, sales, R&D, manufacturing process and production. These excellent talents ensure we can have smooth and health development. Currently, we have 70 employees, 2 of them are certified with senior professional title, 21 with medium-grade professional title and 25 with junior professional title. It helps us to have capability to develop and manufacture first-class CNC machine and special machine.
We run and manage the company according to joint-stock company requirement since it was founded. We have clear and reasonable organization, which make sure our company operate efficiently and smoothly.
Certifications
FAQ
1.MOQ
1 set
2.DELIVERY TIME
It depends on the machine and model you choose.All machines are 100% new and not used.
3.How can I choose the most suitable machines?
Please tell me the machine type or parameter you are interested in, we can quote you the best price.You can also tell us the materials and size of the workpiece, or send us product pictures that you will process, we will choose the most suitable machine for you.
4.Do you provide after-sales service?
Of course. One-year warranty.
5.Are you a factory or trading company ?
We are a manufacturer factory
6.Why choose cooperate with us ?
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;
7.How does your factory do regarding quality control ?
Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.

---
