Outdoor Portable Concert Stage Mobile Stage for Performance Event

Product Description

Outdoor Portable Concert Stage Mobile Stage For Performance Event

Frame material	Aluminum 6061-T6
	US Standard Portable Stage	EU Standard Portable Stage
Platform size	4'x4'/4'x8'	1m x1m /1m x2m
Height options	16''/24''/32'',24''/32''/40'', 32''/40''/48'',40''/48''/52''	0.4m/0.6m/0.8m, 0.6m/0.8m/1.0m, 0.8m/1.0m/1.2m, 1.0m/1.2m/1.5m, 1.5m/1.7m/2.0m
Platform material	laminated plywood 18mm / Toughened glass / Plexiglass / carpet / rubber /etc.
Aluminum Frame tube	Main tube: 50*3mm Brace tube: 25*2mm
Platform color	Red / black / brown, etc.
Stage shape	Rectangle, square, T-shape, round; custom-made available
Optional accessories	Guardrail, step-stair, ramp, aluminium platform trolley, dolly, skirts

We can provide the professional design to clients before place the order!
If you interest in our product, please comtact us!
!!!Requirement!!!

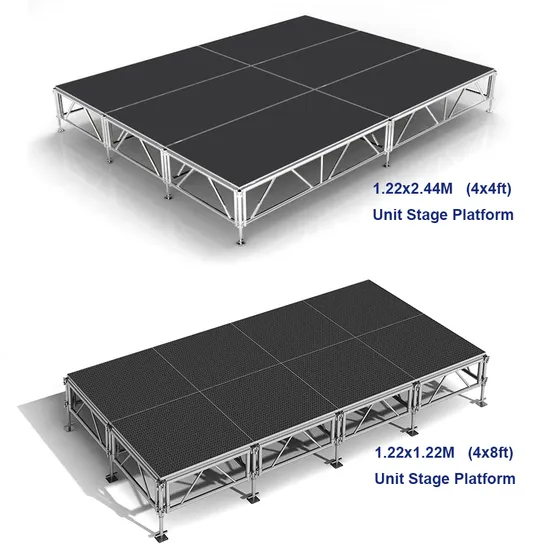

1. Standard stage panel size: 1.22x1.22m (4x4ft) and 1.22x2.44m (4x8ft)
2. Stage adjustable height: 0.4-0.6m, 0.4-0.8m, 0.6-1m, 0.6-1.2m, 0.8-1.2m, 1-1.4m, 1.2-1.8m, 1.2-2m, 1.6-2m optional
Please tell me the stage size and stage height you need?
(For example, stage size 9.76x6.1m with height 0.6m-1m adjustable.)
Stage Conponent
1. Platforms:
• Lightweight and compact for easy setup, transport and storage.
• Water resistant Industrial finish.
• An aluminum lattice structure construction with a weight capacity of up to 800 KGS/sq. meter.
2. Legs:
• Lightweight legs can be adjusted at 24, 32, 40 or 48 inches (60, 80 100 and 120cm) using interchangeable leg extension tubes.
• Legs are shared between adjacent platforms.
• Accessories such as rubber mats, slope adjustment wedges and spikes for soft ground and slope applications are available.
3. Side Braces:
• Lightweight and strong tubular aluminum construction.
• Side Braces are shared between adjacent platforms.
Acrylic Stage
Stage Adjustable Height
Our Advantages We have rich experience in aluminum stage truss industry. We have strict quality control procedures and professional after-sales guidance services. All products can be OEM and meet your requirements. We can provide free drawings of design with you for your special request. And you can enjoy long-term technical advice from our enginnering designers who buy our products. We will assemble and test all products before delivery. Favorable price---with competitive price under the assurance of quality. Test stage in factory before delivery
Real Case
Features
1. Professional welders and engineers
2. Custom-made available, low MOQ---10 square meter
3. Competitive price, durable quality, light weight, excellent load capacity
4. By aluminum alloy 6061-T6 manufacturing, nice appearence, highly gloosy
5. Factory directly supply
6. Water-proof, quickly install and dismantle
7. TUV
TUV Certification
FAQ
Mr. Robert: What frame you make for 4ft*4ft stage flooring ?
A: Cross frame for 4ft*4ft stage deck. And cross frame use 30x40mm square tube, which is quite stronger!
Mr. Ganesh: I want good quality stage, stage leg what size mm pipe? And what height options are available ?
A: 50x3mm, pls see details as below picture.
Euro Standards : 40-80, 60-80-100, 80-100-120cm, 100-120-140cm and so on.
American Standards: 16"- 24, 24"- 32"- 40", and 32"- 40"- 48" , 40"- 48"- 52".
Stage legs have inter pipe which is used to adjust the height of stage.
Packing and Shipping
