US$28,000.00-35,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Bed Type Universal Milling Machine
X715
Travel for Vertical Head
0-670mm
Table Load Weight
20-1800kgs
Spindle Speed Steps
12 Steps
Transport Package
in Wooden Case
Product Description
X715 bed-type universal milling machine
features:
Rigid grey cast-iron construction allows heavy work load

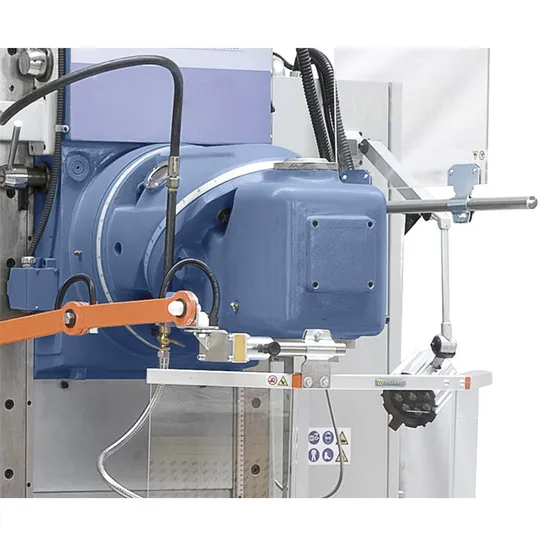

Universal milling head system "Huron" can be adjusted to various angles
Solid flat guiding guarantees stability at heavy milling
Complete with swivel arm and clearly arranged control panel
Inductive hardened and polished guidings
Stepless feed adjustments in all axis
Reinforced saddle in robust box construction
Precisely polished table, ideally positioned on wide saddle
Column and stand in solid box construction
Standard accessoires :
1.Stepless longitudinal and cross feed
2.Work light
3.Universal mill head
4.Horizontal counter bearing
5.Long milling arbor ISO 50 / 32 mm
6.Taper shell end mill holder ISO 50 / 40 mm
7.Telescope cover in z-axis
8.Universal protective device
9.Protective cover for horizontal milling
10.Central lubrication
11.Tools
Optional accessories:
1.Horizontal & vertical rotary table HV 12 - 300mm
2.Tiltable rotary table TSK 320
3.Free machine vise FSV 120
4.Two-parts milling vise MS 200
5.Hydro machine vice VH 200 with swivel base
6.Hydraulic machine vise PHV 200 with swivel base
7.Hydraulic machine vise PHV 250 with swivel base
8.Universal coolant fluid RK 12, 5 l canister
| TECHNISCHE | X715 |
| Table size | 2100 x 500 mm |
| Spindle taper | ISO 50 |
| Spindle speed | (12) 40 - 1600 rpm |
| Travel longitudinal (x) | 1500 mm |
| Trave cross (y) | 700 mm |
| Trave vertical (z) | 700 mm |
| Distance spindle to column | 610 mm |
| Spindle head tilting range | 360° |
| Distance spindle to table | 0 - 700 mm |
| Feeding speeds | / |
| x-axis (stepless) | 20 - 1800 mm/min |
| y-axis (stepless) | 20 - 1800 mm/min |
| z-axis (stepless) | 10 - 900 mm/min |
| Rapid feed x- and y-axis | 3500 mm/min |
| Rapid feed z-axis | 1750 mm/min |
| Feeding motor power | 2,0 kW |
| Coolant motor power | 0,5 kW |
| Main motor power | 7,5 kW |
| Machine dimensions (W x D x H) | 3300 x 2380 x 2750 mm |
| Weight approx. | 7300 kg |
>>
