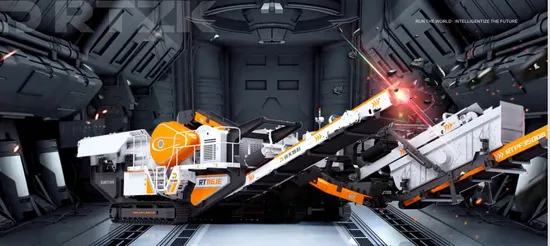

Crushing Machine Crawler Mobile Impact Crushing Plant

US$40,000.00-120,000.00 1 units (MOQ)

Basic Info.

Model NO.
RTPF350DS
Power Source
Electric
Weight
60t
Total Power
309kw
Crusher Model
Np1313
Belt Width
B500mm
Transport Package
Standard Package
Specification
Standard size
Trademark
Changsha Tongchuang Mechanical Co., Ltd.
Origin
Changsha
Production Capacity
1000units/Year

Product Description

Product Description The Runtianzhike crawler mobile counter crushing station has a compact and integrated design, with a small construction area. The crushing mainframe adopts new manufacturing technology and unique structural design, which results in a higher crushing ratio and stronger crushing capacity. The processed products are cuboid-shaped, with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, making it suitable for complex and varied construction environments.
Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing process.Crushing of all kinds of mine rocks; Highway, railway, water conservancy, electricity, construction and other industriesProduction of sand and stone for construction purposes; All kinds of slag, cave slag, waste asphalt concrete, tailings and waste rock crushing and recycling.
Detailed Photos
Product Parameters
RTPF350DS
Crawler Mobile Impact Crushing Plant
Feeding Device Max.feeding Size 600mm
Hopper Volume 5m³
VibratingFeeder Vibrating Motor Power 2*5.5kW
Crusher Crusher Model Np1313
CrusherMotor Power 250kW
Main
Conveying Belt
Belt Width B1000mm
Power 15kW
MixedMaterial
Conveying Belt
Belt Width B1000mm
Power 11kW
Returned Material
Conveying Belt
Belt Width B650mm
Power 5.5kW
Transmission
Conveying Belt
Belt Width B500mm
Power 3kW
Power Device Motor Power 103kW
Traveling Motor Italy PMP
Whole Machine TotalPower 309kW
Total Weight 60t
Working Mode External power supply
Working Dimension 18.3mx5.4mx4.8m
TransportationDimension 18.3mx3.2mx3.9m
