20 Feet Electric Drive Scissor Lift Self Propelled Cheap

Product Description

PRODUCT PRESENTATION

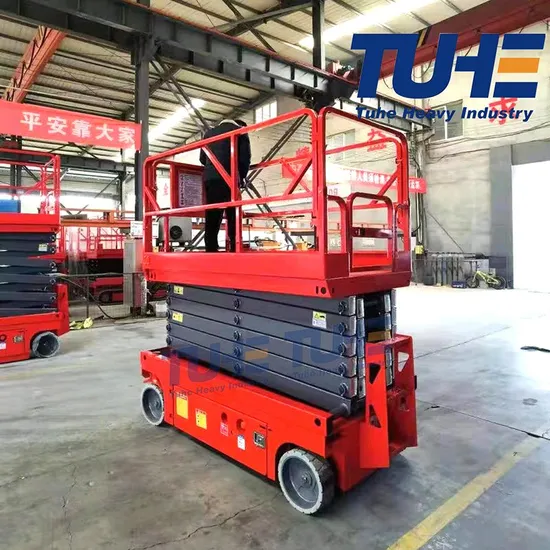

16m Self-propelled Scissor Lift
Self propelled scissor lift is also called electric scissor lift or mobile elevated work platform, it is widely used for working high above the ground, such like window cleaning, light maintainence, building construction or etc. We have different models to meet customers different requirements, also, we accept customization. The self-propelled scissor lift has many advantage, such as reasonable structure, convenient and flexible, space saving, stable performance, thick steel, stable and practical.
TECHNICAL PARAMETER

MODEL	THJZ-6A	THJZ-6	THJZ-8A	THJZ-8A	THJZ-10	THJZ-12
WORKING HEIGHT MAXDMUM	6m	5m	8m	8m	10m	11.8m
SAFE WORKING LOAD	380KG	550KG	230KG	450KG	320KG	320KG
WORKING PLATFORM SIZE	2.26*0.81*1.1M	2.26*1.13*1.1M	2.26*0.81*1.1M	2.26*1.13*1.1M	2.26*1.13*1.1M	2.26*1.13*1.1M
OVERALL SIZE	2.475*0.81*2.158M	2.475*1.15*2.158M	2.475*0.81*2.286M	2.475*1.15*2.286M	2.475*1.15*2.414M	2.475*1.15*2.542M
LEMGH EXTENSION DECK	0.9M	0.9M	0.9M	0.9M	0.9M	0.9M
GROUNG CLEARANCE-CENTER	0.1/0.02M	0.1/0.02M	0.1/0.02M	0.1/0.02M	0.1/0.02M	0.1/0.02M
WHEELBASE	1.89M	1.89M	1.89M	1.89M	1.89M	1.89M
YURNING RADIUS	0/2.1M	0/2.2M	0/2.1M	0/2.2M	0/2.2M	0/2.2M
LIFTING MOTOR	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw
LIFTING SPEED	3-5M/min	3-5M/min	3-5M/min	3-5M/min	3-5M/min	3-5M/min
THE MACHINE SPEED(FOLDED)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
THE MACHINE SPEED(LIFTING)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
BATTERY	4x6V/225ah	4x6V/225ah	4x6V/225ah	4x6V/225ah	4x6V/225ah	4x6V/225ah
CHARGER	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
MAX CLIMR CAPABILITY	25%	25%	25%	25%	25%	25%
MAXIMUM ALLOWABLE WORKING ANGIE	1.5°/3°	2°/3°	1.5°/3°	2°/3°	2°/3°	1.5°/3°
TYRE	Ф381x127mm	Ф381x127mm	Ф381x127mm	Ф381x127mm	Ф381x127mm	Ф381x127mm
WEIGHT	1850kg	2060kg	1980kg	2190lg	2430kg	2960kg

OUR COMPANY
Jinan Tuhe Heavy Industry Co., Ltd. is a large-scale professional and standardized machinery manufacturing enterprise integrating R&D, manufacturing and sales. The company has automated cutting equipment, automated welding equipment, shot blasting line, spraying line, welding robot and other modernizations. Production equipment.

---
