Battery Backup 12V 10A 9 Fused Outputs UPS Power Supply with 12V 7ah Battery for CCTV Security Monitoring Camera

Product Description

Product Description
1. 12V 3a 5a 10a 15a 20a 30a options available to access control power supply
2. Fully enclosed enclosure with a lock to prevent insects and electric shock
3. AC power and status indicators
4. Main power switch to turn on/off power to outputs
5. Each output individually PTC fused
6. Battery charging and maintenance control
7. Battery output protection: short-circuit and reverse polarity connection
8. Fitting battery: 12V 7Ah & 10Ah
9. CE & RoHS & FCC listed
10. ODM & OEM supported and Fast delivery
Product Parameters

Battery Backup 12V 10A 9CH UPS Power Supply Technical Specification
Model No.	UPS-12V-10A-9CH
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	10A
	Power	120W
	Typical Efficiency	85%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	2 years
Feature	Dimension(L*W*H)	285*210*95 mm
	Weight	1600 g
	PCS/CTN	10PCS/CTN
	CTN size	60*29*45cm
	GW/CTN	20.2 kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

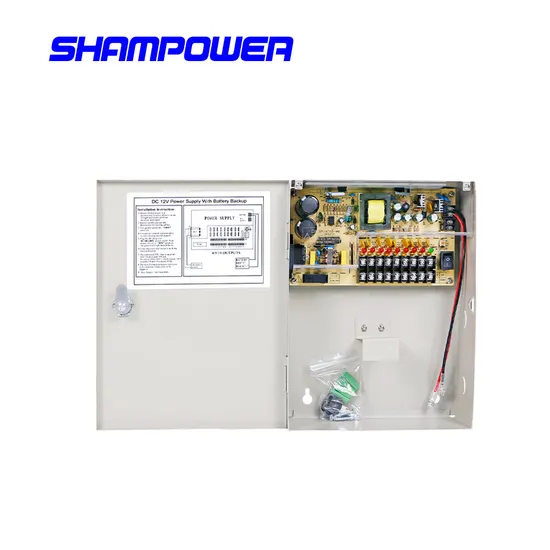

Detailed Photos

Applications:
1. Digital and electronic products
2. 3D Printer
3. Fiber transceivers, game player, LED, CCTV camera
4. Electrical equipment, Instrumentation
5. Industrial equipment
6. Communications and security products;
7. LED Strip Lighting/ LED lamp / LED Lights
8. LED Display, etc. Packaging & Shipping Our power supply package: Each power supply is in one white gift box; 12 PCS to a carton; Customization Accepted
Delivery Detail: usually 3-5 working days, depending on order quantity.

Payment
We accept T/T, LC, Western Union, and Paypal before production buyers have any problems with payment, please feel free to contact us.
FAQ
Q1: What is the warranty for the Uninterrupted UPS power supply?
A1: The Uninterrupted UPS power supply has a three-year warranty. If there are any quality problems not caused by human factors within 3 years, we will send you a new product in the next order.
Q2: How soon can I get samples for testing to check quality?
A2: After the price is confirmed, we can send you samples of our normal products(not customized products) in 1-2 days. Our samples are usually not free, but sample costs can be refundable after large orders are placed.
Q3: What is your defective rate for the CWP IP67 waterproof power supply?
A3: The defective rate for the CWP IP67 waterproof power supply is about 0.3%~0.5%.
Q4: Can you accept OEM&ODM service business?
A4: Yes, we can customize the products, labels, and packages to your demands.
Q5: What's your payment terms?
A5: Standard terms: T/T in advance. Large amount: L/C at sight. Small amounts like sample fees: X-Transfer, Paypal and Western Union.
Q6: What about delivery time?
A6: in 7 days for 1-1,000PCS. in 15 days for 1,000-5,000PCS. in 30 days for 5,000-20,000PCS.
Q7: How do you usually ship the goods?
A7: For small orders, by express. It takes a lot of time for large orders. If you need them urgently, by air. But we promise to find the most economical and safe way to deliver the goods for you.

---
