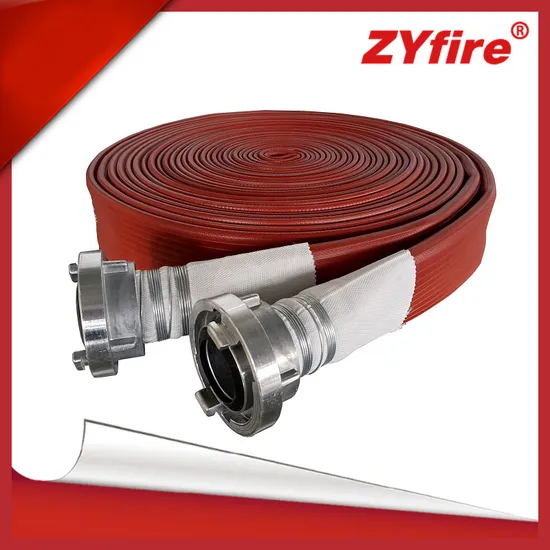

ZYfire BS6391 UL Certified Single Jacket Rubber Covered Layflat NBR Lining Fire Hose
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Reinforcement: Polyester filament.
Cover and Tube: Nitrile/TPR blend tube, thin rib on cover provides better performance in abrasion resistance.
Application: Large diameter hose for water supply, Municipal, Industrial Fire Fighting, Premium Solution.
Standard Length:15m (50ft), 30m (100ft), 50m (165ft), 100m (330ft).
| ID | ID | Service Pressure | Minimum Burst Pressure |
| inch | mm | Psi/bar | Psi/bar |
| 1 1/4" | 32 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1 1/2" | 38 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1 3/4" | 45 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2" | 50 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2 1/2" | 65 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2 3/4" | 70 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 3" | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 4" | 102 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 4 1/2" | 115 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 5" | 127 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 5 1/2" | 140 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 6" | 154 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 7 1/4" | 184 | 120/8, 150/10 | 360/24, 450/30 |
| 8" | 204 | 120/8, 150/10 | 360/24, 450/30 |
| 10" | 254 | 120/8 | 360/24 |
| 12" | 306 | 120/8 | 360/24 |
