Product Description
Product Description

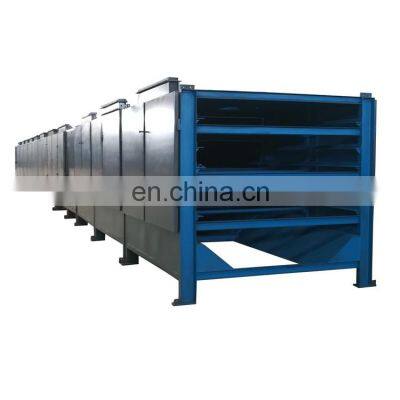

Product Description♥Briquette oven price coal drying oven for briquette production line equip Zhengzhou SINOLION supply♥Chain plate dryer oven is mainly used to dry large specific gravity material, It is one kind batch, tunnel type continuous production drying equipment, Mainly used to oven dry platy, strip and granular material, Heating source is power, steam and hot air, Main principle is to lay material on chain belt evenly ,then chain belt is dragged by transmission device to move forward and aft inside the machine, Hot air flow up and pass through the material, water vapor is discharged by exhaust vent , Finally reach to drying purpose♥It is widely used in Metallurgy, Chemical industry, coal and refractories industries.Main technical parameterModelFB-4-6FB-4-10FB-6-8FB-6-10FB-4-16FB-6-16Effective drying area(m2)43.27286.4108115.2172.8Flap length of every layer(m)6108101616Flap layer No.446646Effective width of flap1.8 mMaterial average thickness10-80 mmOperation temperature50-220℃Steam Pressure0.2-0.8 MpaDrying capacity (kg water/h)210-260360-432432-518540-648576-691864-1036Drying time (h)0.1-10.16-1.60.2-20.25-2.50.3-2.50.5-2.5Working SitePacking & DeliveryBriquette oven price coal drying oven for briquette production line equip Zhengzhou SINOLION supply♥Standard export packing, ♥The loading port is Qingdao Port, also can be requested by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.♥All products will be processed to be rustproof and moisture proof before delivery. ♥20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. ♥Motor is packed with steel case or wooden case. ♥Control panel is packed with wooden case. ♥Loading container in factory.To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Customer VisitCompany Profile♥Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery. Industry drying oven♥After 30years of development, Sinolion machinery is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. ♥SINOLION machinery has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, ♥SINOLION machinery have continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION machinery products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquette mine power in the world market. ♥SINOLION machinery provides space planning and design, equipment installation and commissioning supportFAQQ. What kind of material can be dried by Chain plate flap dryer machine?Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc. Q.What kind of fuel can be used with the briquette flap dryer machine?Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK. Q.What's the drying temperature of the mesh belt dryer?Answer:Drying temperature of the dryer is adjustable. It varies from 50 to 350 °C. Q.How long will the briquettes stay in the briquette flap dryer machine?Answer:Normally the drying time will be about 50-120 minutes. Q.Is the chain plate speed adjustable?Answer: Yes, the chain plate speed is adjustable to make sure it can dry material with different moisture.Contact us
>>
