Table Rotary 1200mm CNC Milling and Drilling Machine for Aluminum Window and Door

Product Description

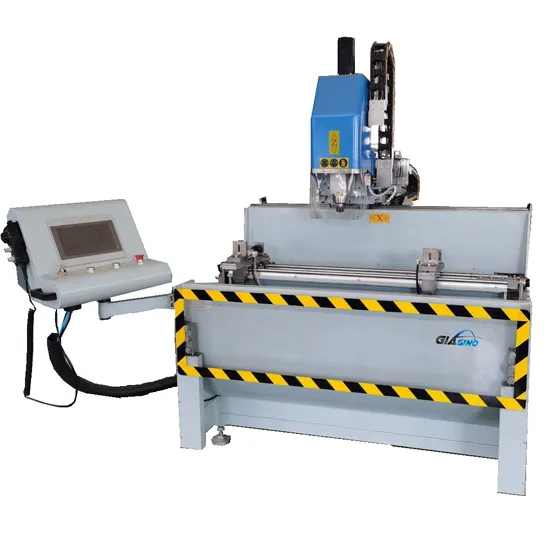

Table Rotary 1200mm CNC Milling and Drilling Machine for Aluminum Window and Door
Equipment Features for Table Rotary 1200mm CNC Milling and Drilling Machine for Aluminum Window and Door
1. Glasino CNC drilling and milling machine is specially for drilling holes ,milling groove ,circular hole,
irregular-shaped and keyhole and plane engraving of aluminum profile.
2. System adopts CNC controller.
3. Adopting electric spindle; high precision, high safety and reliability
4. X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw
transmission; steady transmission and high precision.
5. By using programming software to automatically transform and process G code; easy operation;
high efficiency and low labor intensity.
6. 1200mm/3000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing
by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency
and precision.
Details of Table Rotary 1200mm CNC Milling and Drilling Machine for Aluminum Window and Door:
Working samples of Table Rotary 1200mm CNC Milling and Drilling Machine for Aluminum Window and Door
Technical Parameter

Model	SKX-CNC-1200/3000
In put power	380V50HZ
Total Power	6KW
Max rotary speed	8000-18000r/min
Spindle Power	HQD 3.5KW(HSD optional)
Processing range	100*120mm
Servo driver and motor	Taiwan Delta or China
Linear guide rail	Taiwan Delta or China

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.

---
