Basic Info.
Type
Industrial Aluminium Profile
Window & Door Aluminium Profile
60 Series
Surface Finishing
Anodic Oxidation
Polished Aluminum Profile
Mechanical Polishing
Color
Sliver/Black/Custom
Transport Package
Exoport Packing or According Requirement
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 5.00cm
Package Gross Weight
1.000kg
Product Description

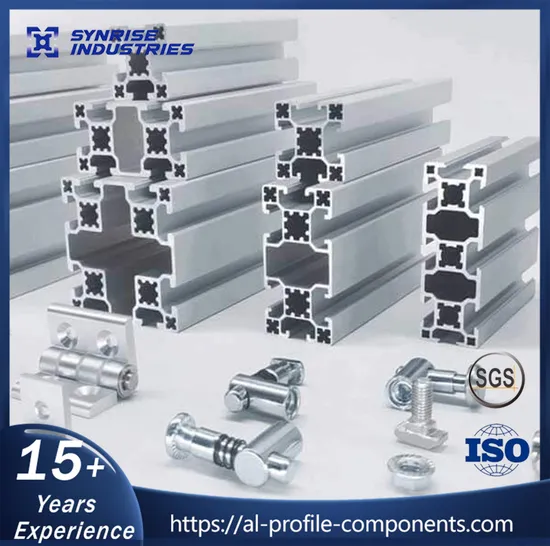

Product Description Anodized Aluminum Profile
PG50 anodized aluminum profiles are designed with exceptional carrying capacity.
Strut profile dimensions 50 combines the advantages of PG40 with the high load-carrying capacity of PG60.
For applications with even higher loads, please try stable PG50 e.g. with heavy work tables, fixtures, machine frames, transport shuttles for heavy-duty, protective wall, and platform systems.
| Series | Modular Assembly System |
| Profile Group | PG 50 |
| Material | 6063-T5 |
| Surface Treatment | Anodized (none for section) |
| Effective Length | 6000mm |
| | A long frame (~ 6000 mm) can also be customized. |
| Color | Silver/ Customized |
Product Introduction
| T Slot | Cross
Section | Core
Hole | Slot Width | Slot
Depth | Wall
Thickness | Profile Group |
| (mm) | (Ø) | (mm) | (mm) | (mm) |
| | 12 | 8.2 | 12.5 | 4 | PG 50 |
Dimensions of PG 50 series
Parameters
| Description | Moment
of
Inertia
lx(cm4) | Moment
of
Inertia
ly(cm4) | Moment
of
Resistance
Wx(cm3) | Moment
of
Resistance
Wy(cm3) | Mass
(kg/m) | Part No. |
| 50x50, 4 slots | 20.40 | 20.40 | 8.20 | 8.20 | 2.45 | 50.1.050050.04.01 |
| 50x50, 4 slots, Heavy | 24.90 | 24.90 | 10.00 | 10.00 | 3.20 | 50.1.050050.04.02 |
| 50x00, 6 slots | 36.10 | 143.90 | 14.50 | 28.80 | 3.90 | 50.1.050100.06 |
| 100x100, 8 slots, Heavy | 327.00 | 327.00 | 65.40 | 65.40 | 8.60 | 50.1.100100.08.02 |
