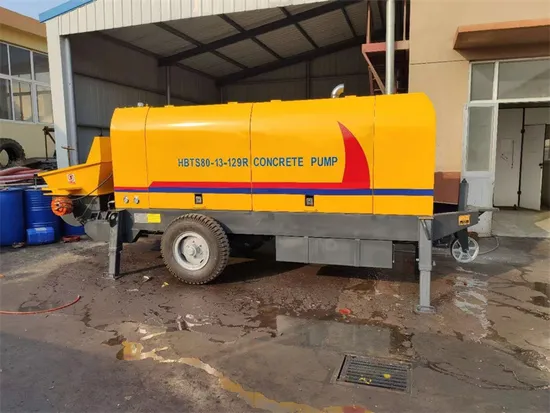

Concrete Conveying Pump Trailer Pump Diesel Mixing Trailer Pump Trailer Type Concrete

Product Description

Product Parameters

Specification of Electric Motor Powered Concrete Pump		HBTS15-13-30	HBTS20-08-30	HBTS30-10-37	HBTS40-11-45	HBTS50-13-55	HBTS60-13-75	HBTS60-16-90	HBTS80-1-90	HBTS80-1-90
Theoretical conveying capacity	high pressure	7	9	13	16	22	37	37	46	47.5
	low pressure	15	18	26	37	46	62	63	77	78
Theoretical conveying pressure	high pressure	13	8	9.5	11	13	13	16	13	16
	low pressure	6	4.2	4.5	5.3	6.2	6.4	9.2	7.4	9.2
Conveying height	Horizontal	500	350	400	450	500	500	600	500	600
	Vertical	150	110	120	130	150	150	180	150	180
Rated power of the main power system (Kw)		30	30	37	45	55	75	90	90	110
Distribution valve form S-pipe valve
Maximum aggregate particle size		25	25	30	30	40	50	50	50	50
Concrete slump (mm)		100~230	100~230	100~230	100~230	100~230	100~230	100~230	100~230	100~230
Power form		motor power
Loading volume (m3)		0.34	0.36	0.4	0.5	0.5	0.5	0.6	0.6	0.6
Loading high (mm)		1050	1050	1180	1300	1350	1400	1400	1400	1400
weight (kg)		1480	1680	2200	2900	3200	4100	5200	5200	5600

Product Description

Concrete pump series D30 D40 D50 concrete pumps support the sample Electric/diesel/ Oil electric hybrid concrete pump
Technical Characteristics:
1.It is equipped with special pipeline.2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline. 3.It is an ideal kind of existing concrete conveyance equipment. 4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation. 5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.6.It is used for conveying concrete in large concrete projects.
Packaging & Shipping

Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.

SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
