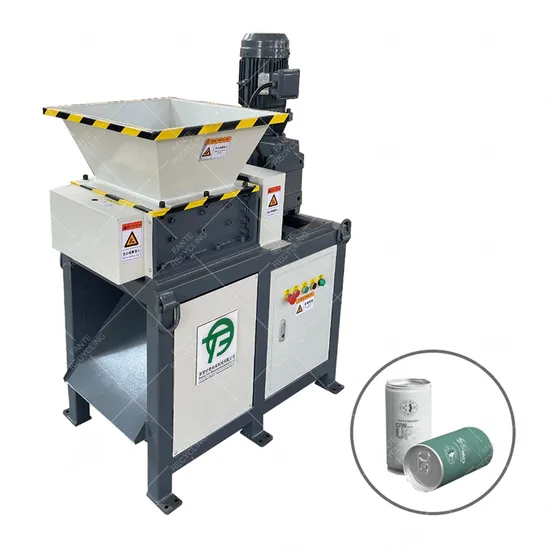

Factory Waste Recycling Machine Double Shaft Mini Tire Tyre Cutting Shredding Machine

Product Description

Model	FTS-300*180	FTS-400*180	FTS-500*180
Motor	3KW-4	4KW-4	7.5KW-4
Reducer	JKA77	JKA87	JKA97
Control panel	PLC System protection	PLC System protection	PLC System protection
Input Speed(rpm)	16	17	15
Input Torque(Nm)	3107	3952	8255
Input shaft diameter(mm)	Φ60	Φ60	Φ70
Tool size( mm)	Φ180*12	Φ180*15	Φ200*20
Number of tools( pcs)	25	26	25
Feed port size( mm)	500*500*300	500*600*300	600*700*400
Dimension (mm)	1200*500*1300	1400*500*1450	1600*600*1550

Fante Small waste shredder is very popular for house hold, the size of breaking chamber is only 400*400/300*200/200*200mm, this model suitable for home,small scale recycling centers.The capacity for crushing is around 350kg/hr. It features with small size,soft price,quick lead time, perfect performance & multi-application. With this mini shredder you can save lots of space andcost of transportation, by selling crushed materials will bring you more profit.
Introduction of waste wood pallet double shaft shredder Double shaft shredder also called cutting shredder through cutting and extrusion to reduce the material size,widely used in the waste plastic,scrape rubber,scrap metal,wood,garbage and other large volume of waste.our company provide shredding machine equipment with mature technology,advanced design and reliable quality to crush and reduce volume before waste recycling.This double shredding machine by the PLC automatic control,with which has start, stop,reverse andautomatic reverse in overload condition.
Main Features of Scrap Metal/Root Crusher Waste Car Shredder Machine For Sale 1.Low noise, less dust with high capacity.
2.Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.
4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
Q&A:
Q:Are you a factory or a trade company? A:We are a manufacturer with our own factory,Welcome to take a visit! Q:How to choose a shredder machine? A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation. Q:How about the service? A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods. Q:How long is your delivery time? A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project. Q:Which trade terms is available? A:FOB, CFR,CIF, EXW and other terms based on your needs.

---
