600 Ton /800 Ton/ 500 Ton Plywood Hydraulic Hot Press Machine for Hydraulic Woodworking Plywood Making Machine

Product Description

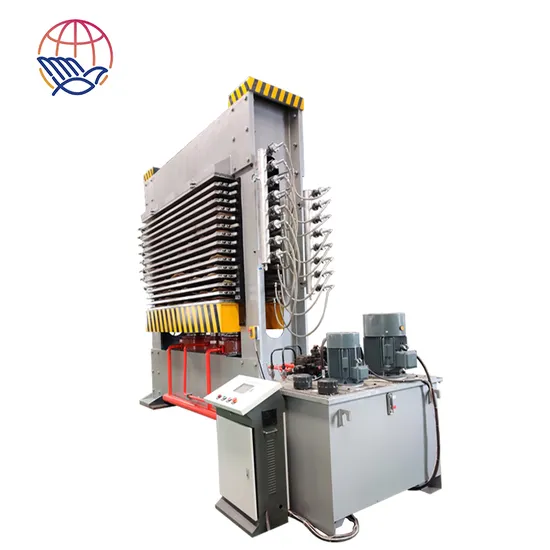

Plywood Hydraulic Hot Press Machine
Hydraulic hot press machine is the most important and necessary machine for making furniture plywood, construction plywood, marine plywood. Please do choose the high quality and reliable hot press .
Hot Press's struchture mainly consist of: the machine frame, hot plates, hydraulic station, cylinder,electric parts.
The pressure and layers are differently,such as 500t, 600t, 800t, 1000t, 1200t. 8layers, 10layers, 12layers, 15layers, 20layers, 25layers.
Tell us your requirements,we will make you the most suitable design.
Our Value: Let our high quality machine help more clients get more benefits,clients' satify is our enternal pursuit!

---Eva Zhu/sales manager
Product Description
Plywood Hydraulic Hot Press Machine
1. Wuxi solid cylinder.
2.Steady and durable ,assembled structure.
3.Taiwan xutian or Jin Yuan heavy duty hydraulic station.
4.Mitsubish touch screen,Schneider electric parts
5. Llifting cylinder,open and close within 20s.
6. Hot platen is Q345 material 42mm or 52mm .
600 Ton /800 Ton/ 500 Ton Plywood Hot Press for Fancy Plywood Making

Plywood Hydraulic Hot Press Machine
Max pressure	500 Tons
Board feeding direction	Transverse
Layers	15Layers
Layer spacing	70mm
Number of hot press plate	16pcs
Hot press plate size	2700*1370*42mm
Cylinder	2*ø360mm*1050mm
Lift cylinder	1*ø180mm*1050mm
Stroke	1050mm
Compression resistance	≤25 Mpa
Total Power	7.5KW+18.5kw
Low pressure pump flowing	105ml/r*1pcs
high pressure pump flowing	17ml/r*1pcs
Overall dimension	3550mm*1370mm*4650mm
Working methods	Semi -automatic
Composite frame	Assembled
Upper and bottom beam	900mm
Middle beam	400mm
Thickness of the frame	35 mm
Weight	About 35 tons

Cylinder:The oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performanceHot platen:Usually hot platen use 42mm or 52mm, The hot platen be processed by large lathe, make the surface smoothly with sufficient strength and stiffness. It does not deform at high temperatures, and the temperature and heat are uniform. This makes the plywood heated evenly, the surface is flat, and the thermal efficiency is high, which improves the production efficiency.Hydraulic Station:Hydraulic station is one the most important part for press machine. Our hydraulic station usually use Jinyuan or Taiwan Xutian brands,with reasonable design , save energy. All hydraulic components are arranged reasonably, neatly and beautifully placed, and the components like electromagnetic valve, hydraulic pump all use good one.
Electric Parts:
Mitsubish touch screen,Schneider electric parts,more durable and long service time.
a
lity China brand wood veneer machine/ veneer peeling lathe 4ft spindleless veneer peeling lathe wood veneer peeling lathe veneer rotary peeling machine 4ft plywood and veneer machine spindleless core veneer peeling lathe rotary peeling machine


Certifications
As the professional manufacturer produce the full sets of veneer machine and plywood machine in Linyi City, Shandong Province, China.
Including Wood debarker, veneer peeling machine, veneer stacker, veneer dryer machine, glue spreader, cold press machine, hot press machine, plywood saw machine, sanding machine.
All these plywood machines have the CE certification and Test Report.

Related Products
Our main machine:wood debarker, veneer peeling machine, knife grinder,veneer stacker, veneer dryer machine, glue spreader,glue mixer,assamble line,paving machine, cold press machine, hot press machine, plywood saw machine, sanding machine.
The value of our factory is: create much more value for clients.
We have our own morality and principle, insist sincerely treat our clients, regard them as our friend, try help their business.
All plywood machine your need ,we would like to help make or purchase,we do every efforts to support our clients.plywood machinery veneer peeling machine for plywood making machine
Packaging & Shipping
We will share test video and pictures to you when finished producing. After your comfirmation we make the loading plan.
When loading, we will send loading pictures to you.
After ship leave, we will offer you container no and ship information, and prepare all documents for your custom clearance.
Veneer peeling machine ,rotary peeling lathe,spindless veneer peeling lathe,wood peeling machine , wood veneer peeler,log peeling machine,log peeling lathe,
plywo Company Profile
Shandong Yuequn Machinery have more than 20 year experience in making plywood machine. Professional expert manufacturer for making plywood machine.
1.Our machines 100% for exported to more than 20 countries, such as Indonesia, Vietnam, Thailand, Malaysia, Philippines, India, Pakistan, Turkey, Russia, Peru, Argentina ,Brazil,Paraguay.ect.
2.Experienced engineer for helping clients install the machine.Any problem that your worker can not solve, tell us, we will reply you at the first time
3.High value the quality,all machine have the CE ceritfication and Test reports.
4.We will make the machine according to your details requirements,ensure our machine work well for all clients.

We are looking forwad to work well with you together.
Main machine: wood rounding debarker,spindle less veneer peeling machine,paving machine ,glue mixer,glue spreader,veneer dryer,cold press,hot press,edge cutting saw,sanding machine ect.
Clients & Exhibition
With our clients we are not just partners, we are good friends too. We do efforts to offer them the most suitable and good plywood machine to them.Help their business develop better and better.
Sincere offer the professional advice to them, offer the good service in time, help them solve the problem at the first time.
We talk with our clients about machine working conditions, reminding them check machine and see if machines are working well. Any time they have problems or need spare parts, we will help them solve immdediately.
The moment when you choose us, we have been your lifetime partners, anytime you need help, we will be there for you.
After Sales Service
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ
Q1:Production Time
A1: month after receive your deposit.
Q2:Payment Terms
A2:30% deposit, 70% before delivery.100% Letter of Credit.
Q3:MOQ
A3:1 set
Q4:Installation
A4:When machine reach your factory, our engineer can go to install
Q5:After-sales service
A5: Any problem that your worker can not solve, tell us, we will reply you at the first time,

Warmly welcome to contact Eva from more details,thank you !

---
