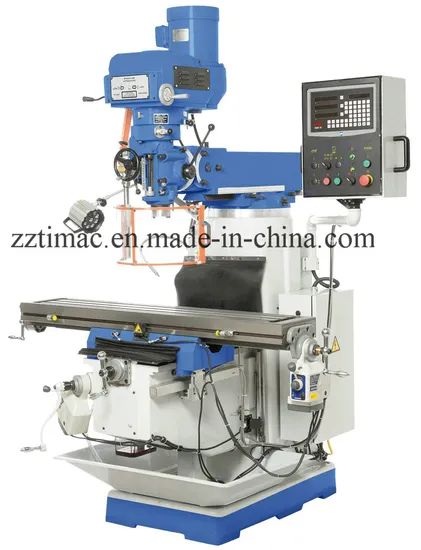

Vertical Turret Milling Machine (4sf/4vf, 4s/4V, 5s/5V)

Product Description

VERTICAL TURRET MILLING MACHINE
The large number of mill head adjustments makes these robust and stable universal milling machines ideal for drilling and milling simple to difficult workpieces in single part production, repair work, training etc.
Features:
1. Work table features large clamping area, surface hardened and polished.
2. Universal mill head can be turned, tilted and swiveled.
3. Hardened and polished guideways in all axis.
4. 3 automatic spindle feeds come standard.
5. Spindle is chromium plated and features micrometer depth stop.
6. Powerful coolant device included in machine base.
Technical Parameter:

Specification

UNIT

2SA/2VA

2SB/2VB

3SA/3VA

3SB/3VB

3SL/3VL

3SU/3VU

4SF/4VF

4S/4V

5S/5V

5SF/5VF

6S/6V

6SF/6VF

M230A

M230B

M250A

M250B

M250

M250U

M250C

M250D

M300

M300A

M330

M330A

Table Size (W × L)

Inch

230 x 1067 (9''x42'')

254 x 1270 (10''x50'')

250 x 1270 (10''x50'')

254 x 1270 (10''x50'')

305 x 1370 (12''x54'')

330 x 1370 (13''x54'')

230 x 1246 (9''x49'')

254 x 1370 (10''x54'')

254 x 1370 (10''x54'')

305 x 1500 (12''x58'')

330 x 1500 (13''x58'')

Longitudinal Travel (X)

mm

650 / 840

850 / 950

770

850 / 950

870 / 1000

870 / 1000

Cross Travel (Y)

mm

305

380

400

400

380

360

Vertical Travel (Z)

mm

350

400

400

400

380

400

T-slot No. x Size

mm

3 x 16

Over Ram Travel

mm

315

470

500

Spindle To Table

mm

0-350

0-400

0-350

0-450

Spindle Taper

-

R8 (Optional : ISO30/ISO40)

ISO40

Spindle Travel

mm

127

Spindle Speed

r.p.m

50HZ: 65-4540 60HZ: 80-5440 (16 Steps)

60-4200 (Variable)

60-3600 (Variable)

Auto. Quill Feed

mm/r

Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″)

Spindle Motor

HP

2.25kw/3HP

3.75kw/5HP

Head Swivel (L & R)

°

90°

Head Tilting ( F & B)

°

45°

Fix

45°

Fix

45°

Fix

X.Y.Z Guide Way

-

Dimension of package

One

mm

1400×1476×2030

1516×1550×2080

1566x1650x2080

1800x2016x2180

Two

mm

1450×1570×2080

1650×1790×2170

1720x1800x2175

1800x2200x2180

Three

mm

1450×2180×2080

1650×2285×2235

Gross Weight

kg

1000

1060

1200

1280

1320

1450

1490

1490

1430

1650

2200

2250

Note:
1. S models equip with Taiwan Made Step Pulley Milling Head.
2. V models equip with Taiwan Made Variable Speed Milling Head.
3. "" means Double 55° Dovetail Guide-way; " " means Rectangular Guide-way
4. X,Y axis adopt Auto. feed gear box as Standard (3SU/3VU).
5. Z-axis adopts high speed lifting motor as Standard (5S/5V, 5SF/5VF, 6S/6V, 6SF/6VF).

Standard Accessories:
Draw bar, Electric cabinet, LED machine light, Hand oil pump, Coolant device, Tool & tool box , Operation manual (English)
Available Options:
Inverter milling head, Air draw bar, 2-axis digital readout (DRO), 3-axis digital readout (DRO), Spindle feed ruler, Spindle protect guard, Worktable protect guard, Plastic splash guard, Electronic central lubrication, Coolant tray, Electro power feed for X axis, Electro power feed for Y axis, Electro power feed for Z axis, Gear box power feed, Table lifting motor, Rotary table, Dividing head, Slotting head, Machine vise with swivel base, Milling chuck collets kit 8pcs, Milling chuck collets kit 15pcs, Deluxe clamping kit set 58pcs
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
