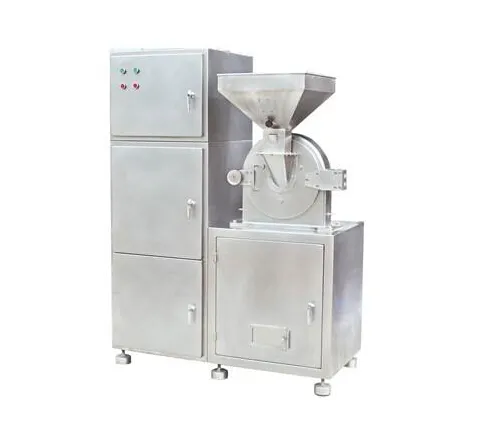

20b IV. V. VI Dust Collecting Pulverizing Set

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
20b
Cutter Material
High-Speed Steel
Drive
Electric
Object
Metal
Type
Impact Crusher
Applied in
Food, Pharmaceutical and Chemical
Crushing Fineness
20-120mesh
Feeding Size
6mm
Weigh
480kg
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Universal Tongs
After-sales Service
1 Year
Warranty
1 Year
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8465990000
Production Capacity
60-150kg/H

Product Description

Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Technical Parameters:
Model Production Capacity Feeding Size Spindle speed Crushing Fineness Crushing Motor Dust collecting motor overall dimension weight
15BIV.V.VI 10-50kg/h 6mm 6000r/min 20-120mesh 2.2kw 0.55kw 950*450*1550 220kg
20BIV.V.VI 60-150kg/h 6mm 4500r/min 20-120mesh 4kw 1.5kw 1120*600*1750 480kg
30BIV.V.VI 100-400kg/h 10mm 3800r/min 20-120mesh 5.5kw 1.5kw 1250*660*1750 550kg
40BIV.V.VI 160-1000kg/h 12mm 3400r/min 20-120mesh 11kw 1.5kw 1450*700*1750 680kg

Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
